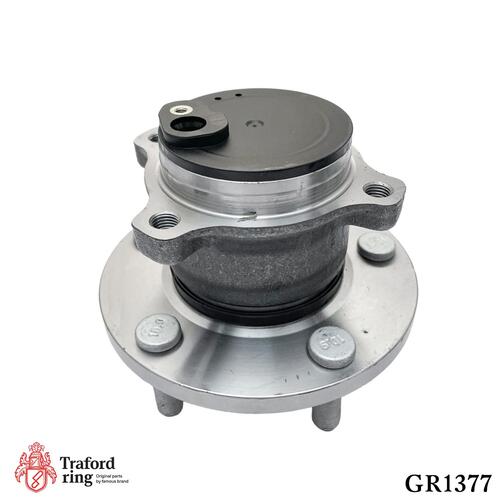

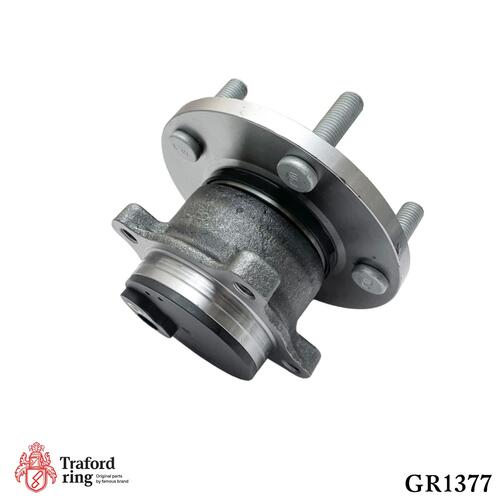

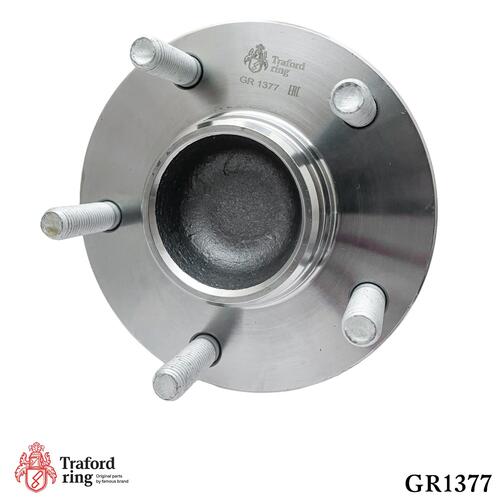

Wheel Hub (rear with bearing) complete unit Mazda 3 (03-)
Product code:
GR 1377
OEM number:
B35N-26-15X, B35N-26-15XA, BBM2-26-15XA, BBM22615XB, BP4K2615XA, BP4K2615XB, BP4K2615XC, BP4K2615XD, BP4K2615XE, BP4K2615XF
| Installation side: | Rear, left/right |
|---|---|
| Inner diameter, mm | 74 |
| Outer diameter, mm | 142 |
| Height, mm | 111,5 |
| Bolt Pattern (PCD) | 5 - M12x1,5 - 114,3 |
| Number of mounting holes | 4 |
| Weight, kg. | 3,77 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| MAZDA | 3 (BK) | 1.4 | 2003 - 2009 |
|---|---|---|---|
| MAZDA | 3 (BK) | 1.6 | 2003 - 2009 |
| MAZDA | 3 (BK) | 1.6 DI Turbo | 2004 - 2009 |
| MAZDA | 3 (BK) | 1.6 MZ-CD | 2006 - 2009 |
| MAZDA | 3 (BK) | 2 | 2003 - 2009 |
| MAZDA | 3 (BK) | 2.0 MZR-CD | 2006 - 2009 |
| MAZDA | 3 (BK) | 2.3 MPS Turbo | 2006 - 2009 |
| MAZDA | 3 (BL) | 1.6 MZR CD | 2008 - 2013 |
| MAZDA | 3 (BL) | 1.6 MZR | 2008 - 2014 |
| MAZDA | 3 (BL) | 2.0 MZR | 2009 - 2014 |
| MAZDA | 3 (BL) | 2.0 MZR DISI | 2008 - 2013 |
| MAZDA | 3 (BL) | 2.2 MZR CD | 2009 - 2013 |
| MAZDA | 3 (BL) | 2.5 | 2009 - 2014 |
| MAZDA | 3 Saloon (BK) | 1.6 | 2004 - 2009 |
| MAZDA | 3 Saloon (BK) | 1.6 DI Turbo | 2004 - 2009 |
| MAZDA | 3 Saloon (BK) | 2 | 2004 - 2009 |
| MAZDA | 3 Saloon (BK) | 2.0 MZR-CD | 2006 - 2009 |
| MAZDA | 3 Saloon (BL) | 1.6 MZR | 2009 - 2014 |
| MAZDA | 3 Saloon (BL) | 1.6 MZR CD | 2008 - 2013 |
| MAZDA | 3 Saloon (BL) | 2.0 MZR | 2009 - 2014 |
| MAZDA | 3 Saloon (BL) | 2.0 MZR DISI | 2009 - 2013 |
| MAZDA | 3 Saloon (BL) | 2.2 MZR CD | 2009 - 2014 |
| MAZDA | 5 (CR19) | 1.8 | 2005 - 2010 |
| MAZDA | 5 (CR19) | 2 | 2005 - 2010 |
| MAZDA | 5 (CR19) | 2.0 CD | 2005 - 2010 |
| MAZDA | 5 (CW) | 1.6 CD | 2010 - present |
| MAZDA | 5 (CW) | 1.8 MZR | 2010 - present |
| MAZDA | 5 (CW) | 2 | 2010 - present |
Product data sheet / warranty card
