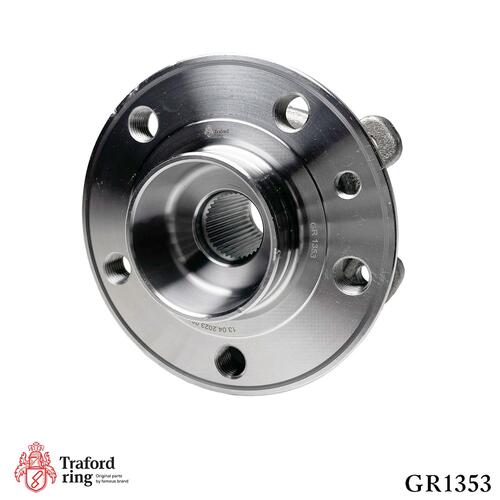

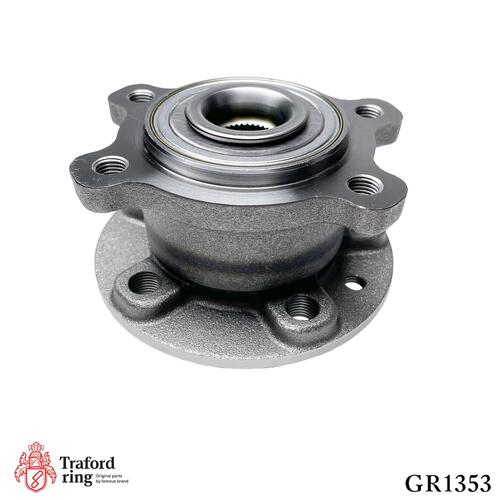

Wheel Hub (rear with bearing) complete unit Volvo S60 (10-)/V70 (10-) AWD
Product code:
GR 1353
OEM number:
30666645, 30760189, 30794978, 307949780, 31212949, 312129490, 312129497, 31262356, 312623560, 312623564, 31277809, 312778095, 312802
| Installation side: | Rear, left/right |
|---|---|
| Outer diameter, mm | 136 |
| Height, mm | 92,5 |
| Design features: | with bearing |
| Number of teeth | 36 |
| Bolt Pattern (PCD) | 5-M14x1.5-108 |
| Number of mounting holes | 4 |
| Weight, kg. | 3.3 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| VOLVO | S60 II | 2.4 D4 AWD | 2015 - present |
|---|---|---|---|
| VOLVO | S60 II | 2.5 T5 AWD | 2012 - present |
| VOLVO | S60 II | 3.0 T AWD | 2014 - present |
| VOLVO | S60 II | D5 AWD | 2010 - 2015 |
| VOLVO | S60 II | T6 AWD | 2010 - 2015 |
| VOLVO | S80 II (AS) | 3.2 AWD | 2007 - 2012 |
| VOLVO | S80 II (AS) | 4.4 V8 AWD | 2006 - 2012 |
| VOLVO | S80 II (AS) | D5 AWD | 2007 - present |
| VOLVO | S80 II (AS) | T6 AWD | 2007 - 2016 |
| VOLVO | V60 | 2.0 AWD | 2015 - present |
| VOLVO | V60 | 2.4 D5 AWD | 2011 - 2015 |
| VOLVO | V60 | 2.4 D5 Hybrid AWD | 2015 - present |
| VOLVO | V60 | 2.4 Hybrid D6 AWD | 2012 - 2015 |
| VOLVO | V60 | 3.0 T AWD | 2014 - present |
| VOLVO | V60 | D4 AWD | 2012 - 2015 |
| VOLVO | V60 | D5 AWD | 2010 - 2015 |
| VOLVO | V60 | D6 Hybrid AWD | 2015 - present |
| VOLVO | V60 | T5 AWD | 2015 - present |
| VOLVO | V60 | T6 AWD | 2010 - 2015 |
| VOLVO | V70 III (BW) | 3.2 AWD | 2007 - 2015 |
| VOLVO | V70 III (BW) | D4 AWD | 2007 - 2015 |
| VOLVO | V70 III (BW) | D5 AWD | 2007 - 2015 |
| VOLVO | V70 III (BW) | T6 AWD | 2007 - 2015 |
| VOLVO | XC70 II | 2.4 D / D4 AWD | 2007 - present |
| VOLVO | XC70 II | 3.2 AWD | 2007 - present |
| VOLVO | XC70 II | D4 AWD | 2013 - present |
| VOLVO | XC70 II | D5 AWD | 2007 - 2015 |
| VOLVO | XC70 II | T5 AWD | 2015 - present |
| VOLVO | XC70 II | T6 AWD | 2008 - present |
Product data sheet / warranty card
