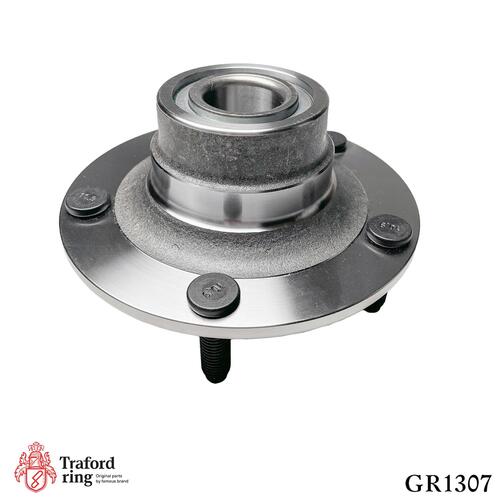

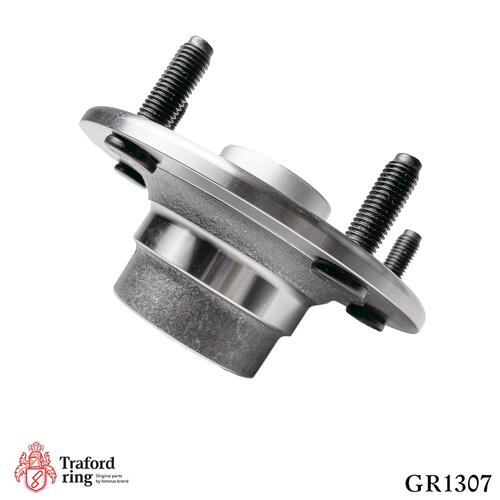

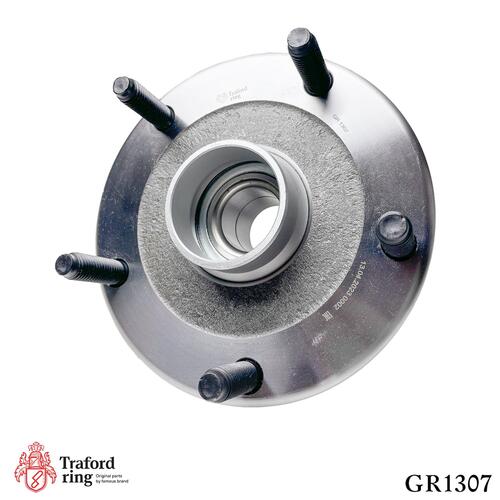

Wheel Hub (rear with bearing) complete unit Ford Transit (00-) front-wheel drive up to 1300 kg w/o ABS
Product code:
GR 1307
OEM number:
1201304, 1377910, 4164671, 6C11-1A049-AA
| Installation side: | Rear, left/right |
|---|---|
| Inner diameter, mm | 37 |
| Outer diameter, mm | 189 |
| Height, mm | 108,5 |
| Design features: | with bearing |
| Bolt Pattern (PCD) | 5-M14-160 |
| Weight, kg. | 4.75 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| FORD | TRANSIT Box | 2.2 TDCi | 2006 - 2014 |
|---|---|---|---|
| FORD | TRANSIT Box | 2.2 TDCi 4x4 | 2011 - 2014 |
| FORD | TRANSIT Box | 2.2 TDCi [RWD] | 2011 - 2014 |
| FORD | TRANSIT Box | 2.3 16V CNG [RWD] | 2006 - 2014 |
| FORD | TRANSIT Box | 2.3 16V LPG [RWD] | 2006 - 2014 |
| FORD | TRANSIT Box | 2.3 16V [RWD] | 2006 - 2014 |
| FORD | TRANSIT Box | 2.4 TDCi 4x4 | 2006 - 2014 |
| FORD | TRANSIT Box | 2.4 TDCi [RWD] | 2006 - 2014 |
| FORD | TRANSIT Box | 3.2 TDCi [RWD] | 2007 - 2014 |
| FORD | TRANSIT Box (FA_ _) | 2.0 DI (FAE_, FAF_, FAG_) | 2000 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.0 TDCi | 2002 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.3 | 2001 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.3 16V [RWD] (FAA_, FAB_, FAC_) | 2001 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.3 BiFuel | 2001 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.4 DI (FAA_, FAB_, FAC_, FAD_) | 2000 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.4 DI [RWD] (FAA_, FAB_, FAC_, FAD_) | 2000 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.4 TDCi | 2004 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.4 TDE | 2001 - 2006 |
| FORD | TRANSIT Bus | 2.2 TDCi | 2006 - 2014 |
| FORD | TRANSIT Bus | 2.2 TDCi [RWD] | 2011 - 2014 |
| FORD | TRANSIT Bus | 2.4 TDCi | 2006 - 2014 |
| FORD | TRANSIT Bus | 2.4 TDCi 4x4 | 2006 - 2014 |
| FORD | TRANSIT Bus | 3.2 TDCi | 2008 - 2014 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.0 DI (F_E_, F_F_, F_G_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.0 TDCi (F_F_, F_E_, F_G_) | 2002 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.3 16V [RWD] (F_B_, F_C_, F_A_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 DI (F_B_, F_C_, F_A_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 DI [RWD] (F_B_, F_C_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 DI [RWD] (F_B_, F_C_, F_A_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 TDCi | 2004 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 TDE | 2004 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 TDE (F_C_, F_B_, F_A_) | 2001 - 2006 |
| FORD | TRANSIT Platform/Chassis | 2.2 TDCi | 2006 - 2014 |
| FORD | TRANSIT Platform/Chassis | 2.2 TDCi 4x4 | 2011 - 2014 |
| FORD | TRANSIT Platform/Chassis | 2.2 TDCi [RWD] | 2011 - 2014 |
| FORD | TRANSIT Platform/Chassis | 2.3 16V CNG [RWD] | 2006 - 2014 |
| FORD | TRANSIT Platform/Chassis | 2.3 16V LPG [RWD] | 2006 - 2014 |
| FORD | TRANSIT Platform/Chassis | 2.3 16V [RWD] | 2006 - 2014 |
| FORD | TRANSIT Platform/Chassis | 2.4 TDCi 4x4 | 2006 - 2014 |
| FORD | TRANSIT Platform/Chassis | 2.4 TDCi [RWD] | 2006 - 2014 |
| FORD | TRANSIT Platform/Chassis | 3.2 TDCi [RWD] | 2007 - 2014 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.0 DI (F_E_, F_F_) | 2000 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.0 TDCi (F_E_, F_F_) | 2002 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.3 16V (F_A_, F_B_, F_C_, F_D_) | 2001 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.3 BiFuel | 2001 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 2000 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.4 TDCi | 2004 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.4 TDE | 2001 - 2006 |
| FORD | TRANSIT TOURNEO | 2.2 TDCi | 2006 - 2014 |
Product data sheet / warranty card
