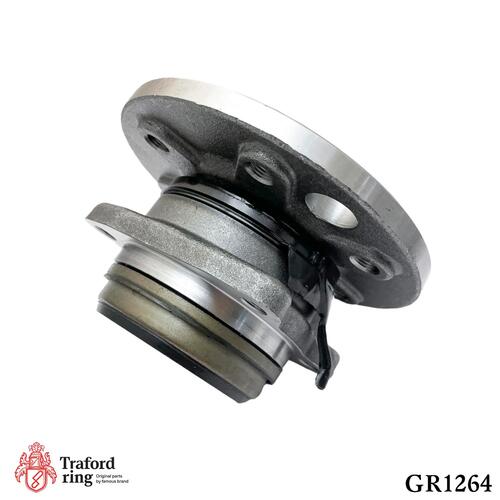

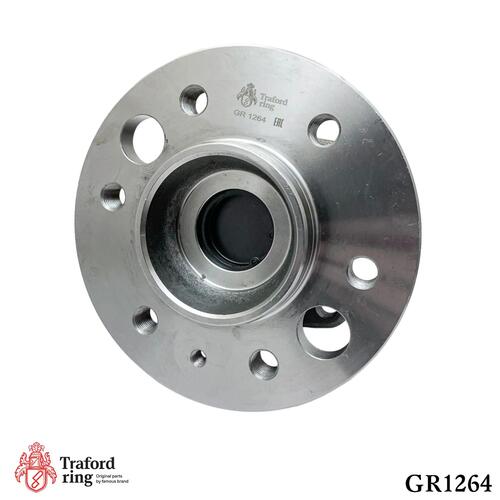

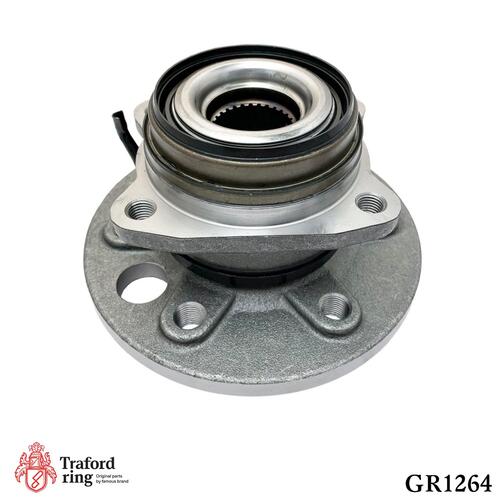

Wheel Hub (rear with bearing) complete unit Mercedes Sprinter (06-)
Product code:
GR 1264
OEM number:
A 906 350 03 35, A 906 350 24 10, A 906 350 25 10, A 906 350 26 10, A 906 350 27 10, A 906 350 37 10, A 906 350 38 10, A 906 350 39 10, A 906 350 40 10, 2E0 501 171 E, 2E0 501 171 G, 2E0 501 172 D, 2E0 501 172 F
| Installation side: | Rear, left/right |
|---|---|
| Inner diameter, mm | 98 |
| Outer diameter, mm | 175 |
| Height, mm | 112 |
| Number of teeth | 29 |
| Bolt Pattern (PCD) | 6-M14x1,5-130 |
| Number of mounting holes | 4 |
| Weight, kg. | 6,15 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 309 CDI (906.631, 906.633, 906.635, 906.637) | 2006 - 2009 |
|---|---|---|---|
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 310 CDI (906.631, 906.633, 906.635, 906.637) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 311 CDI (906.631, 906.633, 906.635, 906.637) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 311 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 313 CDI (906.631, 906.633, 906.635, 906.637) | 2006 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 313 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 314 CDI (906.631, 906.633, 906.635, 906.637) | 2016 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 314 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2016 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 315 CDI (906.631, 906.633, 906.635, 906.637) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 315 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 316 (906.635, 906.633) | 2008 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 316 CDI (906.631, 906.633, 906.635, 906.637) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 316 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 318 CDI (906.631, 906.633, 906.635, 906.637) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 318 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 319 CDI / BlueTEC (906.631, 906.633, 906.635, 906.637) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 319 CDI / BlueTEC 4x4 (906.631, 906.633, 906.635,... | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 324 (906.633, 906.635, 906.637) | 2006 - 2013 |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 316 LGT (906.633, 906.635) | 2008 - present |
| MERCEDES-BENZ | SPRINTER 35-t Box (906) | 316 NGT (906.633, 906.635) | 2008 - present |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 310 CDI (906.731, 906.733, 906.735) | 2009 - 2013 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 311 CDI (906.731, 906.733, 906.735) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 311 CDI 4x4 (906.731, 906.733, 906.735) | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 313 CDI (906.731, 906.733, 906.735) | 2011 - 2016 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 313 CDI 4x4 (906.731, 906.733, 906.735) | 2011 - 2016 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 314 CDI (906.731, 906.733, 906.735) | 2016 - present |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 314 CDI 4x4 (906.731, 906.733, 906.735) | 2016 - present |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 315 CDI (906.731, 906.733, 906.735) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 315 CDI 4x4 (906.731, 906.733, 906.735) | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 316 (906.733, 906.735) | 2008 - present |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 316 CDI (906.731, 906.733, 906.735) | 2011 - present |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 316 CDI 4x4 (906.731, 906.733, 906.735) | 2011 - present |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 318 CDI (906.731, 906.733, 906.735) | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 318 CDI 4x4 (906.731, 906.733, 906.735) | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 319 CDI / BlueTEC (906.731, 906.733, 906.735) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 319 CDI / BlueTEC 4x4 (906.731, 906.733, 906.735) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 324 (906.733, 906.735) | 2006 - 2013 |
| MERCEDES-BENZ | SPRINTER 35-t Bus (906) | 316 LGT | 2008 - present |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 309 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 310 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... | 2009 - 2016 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 311 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 311 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 313 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... | 2006 - 2016 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 313 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... | 2006 - 2016 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 314 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... | 2016 - present |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 314 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... | 2016 - present |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 315 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 315 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 316 (906.133, 906.135, 906.233, 906.235) | 2008 - present |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 316 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 316 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 318 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 318 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... | 2008 - 2009 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 319 CDI / BlueTEC (906.131, 906.133, 906.135, 906.231,... | 2009 - present |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 319 CDI / BlueTEC 4x4 (906.131, 906.133, 906.135,... | 2011 - present |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 324 (906.133, 906.135, 906.233, 906.235) | 2006 - 2013 |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 316 NGT (906.133, 906.135, 906.233, 906.235) | 2008 - present |
| MERCEDES-BENZ | SPRINTER 35-t Platform/Chassis (906) | 316 LGT (906.133, 906.135, 906.233, 906.235) | 2008 - present |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 209 CDI (906.611, 906.613) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 210 CDI (906.611, 906.613) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 211 CDI (906.611, 906.613) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 213 CDI (906.611, 906.613) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 214 CDI (906.611, 906.613) | 2016 - present |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 215 CDI (906.611, 906.613) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 216 (906.613) | 2008 - present |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 216 CDI (906.611, 906.613) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 218 CDI (906.611, 906.613) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 219 CDI / BlueTEC (906.611, 906.613) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 3-t Box (906) | 224 (906.613) | 2006 - present |
| MERCEDES-BENZ | SPRINTER 3-t Bus (906) | 210 CDI (906.711, 906.713) | 2009 - 2013 |
| MERCEDES-BENZ | SPRINTER 3-t Bus (906) | 211 CDI (906.711, 906.713) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Bus (906) | 213 CDI (906.711, 906.713) | 2006 - 2016 |
| MERCEDES-BENZ | SPRINTER 3-t Bus (906) | 214 CDI (906.711, 906.713) | 2016 - present |
| MERCEDES-BENZ | SPRINTER 3-t Bus (906) | 215 CDI (906.711, 906.713) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Bus (906) | 216 (906.713) | 2008 - present |
| MERCEDES-BENZ | SPRINTER 3-t Bus (906) | 216 CDI (906.711, 906.713) | 2006 - present |
| MERCEDES-BENZ | SPRINTER 3-t Bus (906) | 224 (906.713) | 2006 - 2013 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 209 CDI (906.111, 906.113, 906.211, 906.213) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 210 CDI (906.111, 906.113, 906.211, 906.213) | 2009 - 2016 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 211 CDI (906.111, 906.113, 906.211, 906.213) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 213 CDI (906.111, 906.113, 906.211, 906.213) | 2006 - 2016 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 214 CDI (906.111, 906.113, 906.211, 906.213) | 2016 - present |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 215 CDI (906.111, 906.113, 906.211, 906.213) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 216 (906.113, 906.213) | 2008 - 2016 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 216 CDI (906.111, 906.113, 906.211, 906.213) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 218 CDI (906.111, 906.113, 906.211, 906.213) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 219 CDI / BlueTEC (906.111, 906.113, 906.211, 906.213) | 2009 - 2016 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (906) | 224 (906.113, 906.213) | 2006 - 2013 |
| MERCEDES-BENZ | SPRINTER 46-t Box (906) | 411 CDI (906.653, 906.655, 906.657) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 46-t Box (906) | 413 CDI (906.653, 906.655, 906.657) | 2006 - 2016 |
| MERCEDES-BENZ | SPRINTER 46-t Box (906) | 414 CDI | 2016 - present |
| MERCEDES-BENZ | SPRINTER 46-t Box (906) | 415 CDI (906.653, 906.655, 906.657) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 46-t Box (906) | 416 CDI (906.653, 906.655, 906.657) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 46-t Box (906) | 418 CDI (906.653, 906.655, 906.657) | 2009 - 2016 |
| MERCEDES-BENZ | SPRINTER 46-t Box (906) | 419 CDI (906.653, 906.655, 906.657) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 46-t Box (906) | 424 (906.655, 906.657, 906.653) | 2006 - 2013 |
| MERCEDES-BENZ | SPRINTER 46-t Platform/Chassis (906) | 411 CDI (906.153, 906.155, 906.253, 906.255) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 46-t Platform/Chassis (906) | 413 CDI | 2009 - present |
| MERCEDES-BENZ | SPRINTER 46-t Platform/Chassis (906) | 414 CDI | 2016 - present |
| MERCEDES-BENZ | SPRINTER 46-t Platform/Chassis (906) | 415 CDI (906.153, 906.155, 906.253, 906.255) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 46-t Platform/Chassis (906) | 416 CDI (906.153, 906.155, 906.253, 906.255) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 46-t Platform/Chassis (906) | 418 CDI (906.153, 906.155, 906.253, 906.255) | 2006 - 2009 |
| MERCEDES-BENZ | SPRINTER 46-t Platform/Chassis (906) | 419 CDI (906.153, 906.155, 906.253, 906.255) | 2009 - present |
| MERCEDES-BENZ | SPRINTER 46-t Platform/Chassis (906) | 424 (906.153, 906.155, 906.253, 906.255) | 2006 - 2013 |
| VW | CRAFTER 30-35 Bus (2E_) | 2.0 TDI | 2011 - 2016 |
| VW | CRAFTER 30-35 Bus (2E_) | 2.0 TDI 4motion | 2011 - 2016 |
| VW | CRAFTER 30-35 Bus (2E_) | 2.5 TDI | 2006 - 2013 |
| VW | CRAFTER 30-50 Box (2E_) | 2.0 TDI | 2011 - 2016 |
| VW | CRAFTER 30-50 Box (2E_) | 2.0 TDI 4motion | 2011 - 2016 |
| VW | CRAFTER 30-50 Box (2E_) | 2.5 TDI | 2006 - 2013 |
| VW | CRAFTER 30-50 Platform/Chassis (2F_) | 2.0 TDI | 2011 - 2016 |
| VW | CRAFTER 30-50 Platform/Chassis (2F_) | 2.0 TDI 4motion | 2011 - 2016 |
| VW | CRAFTER 30-50 Platform/Chassis (2F_) | 2.5 TDI | 2006 - 2013 |
