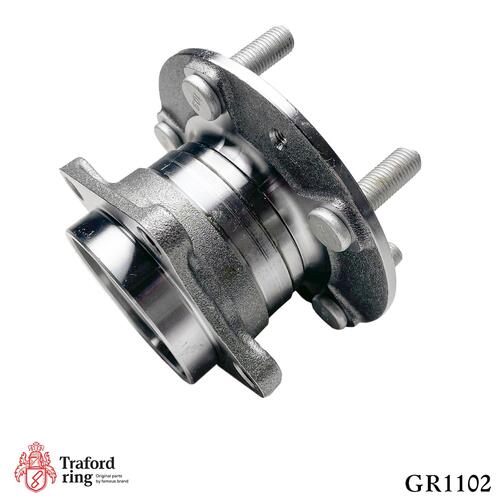

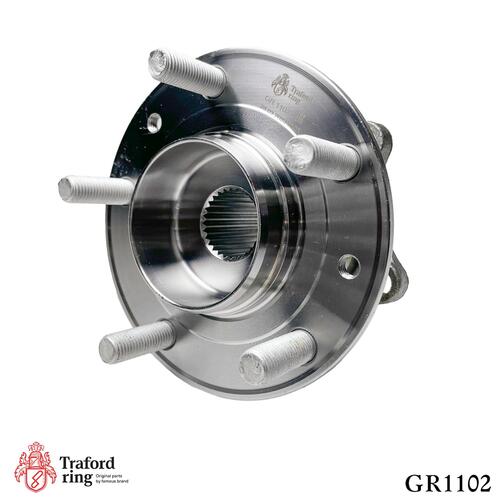

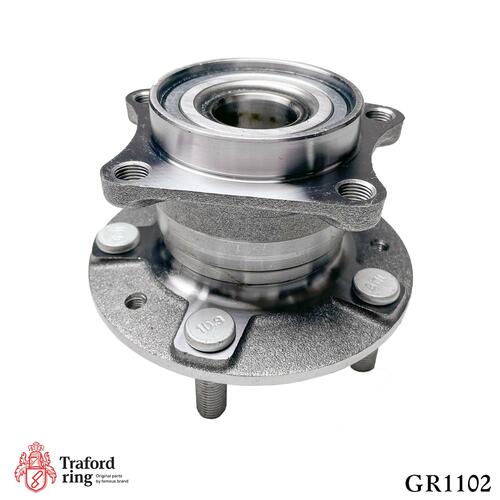

Wheel Hub (rear with bearing) complete unit Mazda CX-7 (07-)
Product code:
GR 1102
OEM number:
G33S-26-15XB, C253-26-15XA, G33S-26-15X, G33S-26-15XA, G33S-26-15XC, KLT-MZ-052S
| Installation side: | Rear, left/right |
|---|---|
| Inner diameter, mm | 78 |
| Outer diameter, mm | 140 |
| Height, mm | 111.5 |
| Design features: | with bearing |
| Number of teeth | 28 |
| Bolt Pattern (PCD) | 5-M12x1.5-114.3 |
| Number of mounting holes | 4 |
| Weight, kg. | 3.1 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| MAZDA | 3 (BK) | 1.4 | 2003 - 2009 |
|---|---|---|---|
| MAZDA | 3 (BK) | 1.6 | 2003 - 2009 |
| MAZDA | 3 (BK) | 1.6 DI Turbo | 2004 - 2009 |
| MAZDA | 3 (BK) | 2 | 2003 - 2009 |
| MAZDA | 3 Saloon (BK) | 1.6 | 2004 - 2009 |
| MAZDA | 3 Saloon (BK) | 1.6 DI Turbo | 2004 - 2009 |
| MAZDA | 3 Saloon (BK) | 2 | 2004 - 2009 |
| MAZDA | CX-7 (ER) | 2.3 MZR DISI Turbo AWD | 2007 - 2013 |
| MAZDA | CX-7 (ER) | 2.3 AWD | 2006 - 2012 |
| MAZDA | CX-7 (ER) | 2.2 MZR-CD AWD | 2012 - 2013 |
Product data sheet / warranty card
