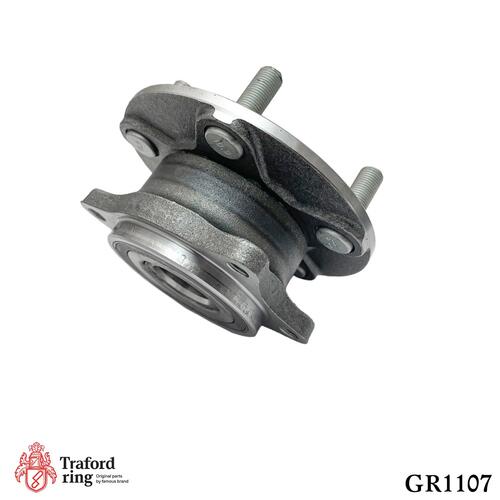

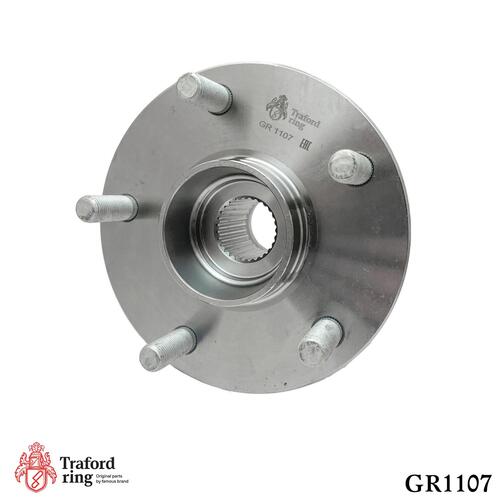

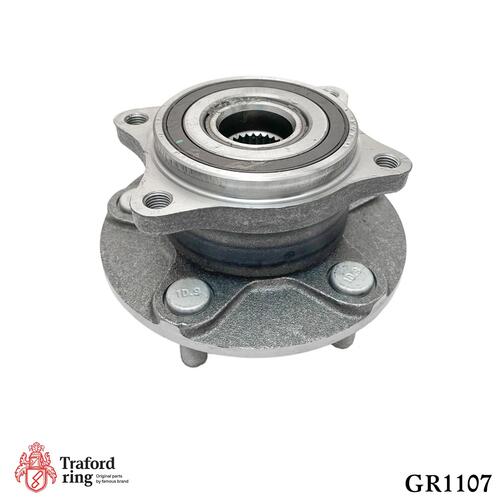

Wheel Hub (front/rear with bearing) complete unit Suzuki Grand Vitara (05-)
Product code:
GR 1107
OEM number:
43402-57L51, 43401-65J00, 43401-65J01, 43401-65J02, 43402-57L50
| Installation side: | Front, left/right |
|---|---|
| Inner diameter, mm | 84 |
| Outer diameter, mm | 139 |
| Height, mm | 78,5 |
| Number of teeth | 28 |
| Bolt Pattern (PCD) | 5-M12x1,25-114,3 |
| Number of mounting holes | 4 |
| Weight, kg. | 3,1 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| SUZUKI | GRAND VITARA II (JT TE TD) | 1.6 (JB416) | 2005 - present |
|---|---|---|---|
| SUZUKI | GRAND VITARA II (JT TE TD) | 1.6 All-wheel Drive (JB416) | 2005 - present |
| SUZUKI | GRAND VITARA II (JT TE TD) | 1.9 DDiS All-wheel Drive (JT419, TD44, JB419WD, JB419XD) | 2005 - 2015 |
| SUZUKI | GRAND VITARA II (JT TE TD) | 2.0 (JB420) | 2005 - 2015 |
| SUZUKI | GRAND VITARA II (JT TE TD) | 2.0 All-wheel Drive (TD54, JB420) | 2005 - 2015 |
| SUZUKI | GRAND VITARA II (JT TE TD) | 2.4 (JB424) | 2009 - present |
| SUZUKI | GRAND VITARA II (JT TE TD) | 2.4 All-wheel Drive (JB424) | 2009 - present |
| SUZUKI | GRAND VITARA II (JT TE TD) | 2.4 All-wheel Drive (JT424, JB424) | 2009 - present |
| SUZUKI | GRAND VITARA II (JT TE TD) | 2.7 All-wheel Drive (JB627) | 2007 - 2008 |
| SUZUKI | GRAND VITARA II (JT TE TD) | 3.2 All-wheel Drive (TDB4, JT632, JB632) | 2009 - 2015 |
