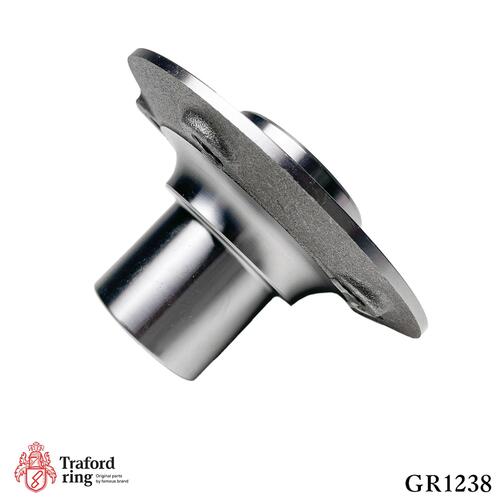

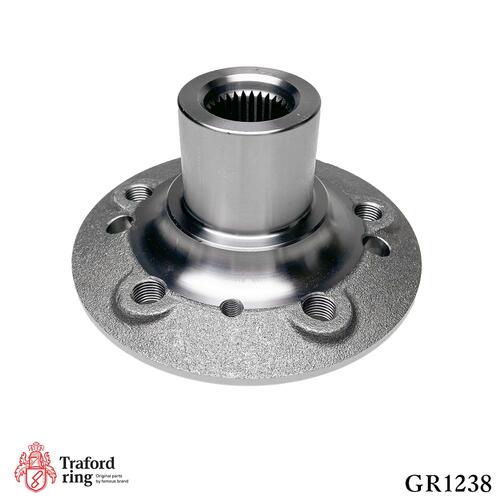

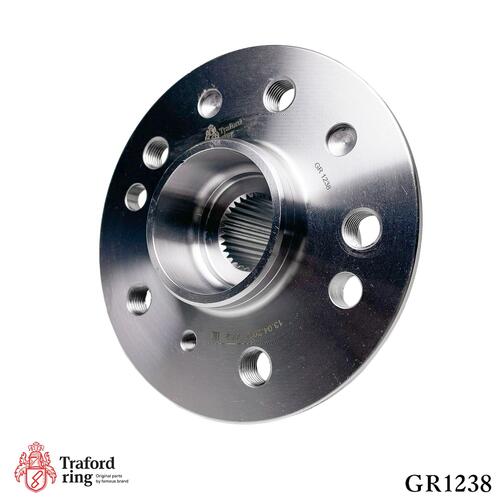

Wheel Hub (front-rear) Mercedes ML (W164) (05-)/GL (06-)/R (06-)
Product code:
GR 1238
OEM number:
A1643560101, A1643560201
| Installation side: | Front/rear, left/right |
|---|---|
| Inner diameter, mm | 54 |
| Outer diameter, mm | 152 |
| Height, mm | 89 |
| Design features: | without bearing |
| Number of teeth | 30 |
| Bolt Pattern (PCD) | 5-M14x1.5-112 |
| Weight, kg. | 2.3 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| MERCEDES-BENZ | GL-CLASS (X164) | GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) | 2009 - present |
|---|---|---|---|
| MERCEDES-BENZ | GL-CLASS (X164) | GL 320 CDI 4-matic (164.822) | 2006 - 2009 |
| MERCEDES-BENZ | GL-CLASS (X164) | GL 350 CDI 4-matic (164.822) | 2009 - present |
| MERCEDES-BENZ | GL-CLASS (X164) | GL 350 CDI 4-matic (164.823) | 2010 - present |
| MERCEDES-BENZ | GL-CLASS (X164) | GL 420 CDI 4-matic (164.828) | 2006 - 2009 |
| MERCEDES-BENZ | GL-CLASS (X164) | GL 450 4-matic (164.871) | 2006 - present |
| MERCEDES-BENZ | GL-CLASS (X164) | GL 450 CDI 4-matic (164.828) | 2009 - present |
| MERCEDES-BENZ | GL-CLASS (X164) | GL 500 4-matic (164.886) | 2006 - present |
| MERCEDES-BENZ | M-CLASS (W164) | ML 280 CDI 4-matic (164.120) | 2005 - 2009 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 300 CDI 4-matic (164.120) | 2009 - 2011 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 300 CDI 4-matic (164.121) | 2010 - 2011 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 320 CDI 4-matic (164.122) | 2005 - 2009 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 350 4-matic (164.186) | 2005 - 2011 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 350 CDI 4-matic (164.122) | 2009 - 2011 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 350 CDI 4-matic (164.125) | 2009 - 2011 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 420 CDI 4-matic (164.128) | 2006 - 2009 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 450 CDI 4-matic (164.128) | 2009 - 2011 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 500 4-matic (164.172) | 2007 - 2011 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 500 4-matic (164.175) | 2005 - 2011 |
| MERCEDES-BENZ | M-CLASS (W164) | ML 63 AMG 4-matic (164.177) | 2006 - 2011 |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 280 (251.054, 251.154) | 2007 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 280 CDI (251.121, 251.026, 251.126) | 2006 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 280 CDI 4-matic (251.020) | 2006 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 300 (251.054, 251.154) | 2009 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 300 CDI (251.021, 251.121, 251.026, 251.126) | 2009 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 300 CDI 4-matic (251.020) | 2009 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 320 CDI 4-matic (251.022, 251.122) | 2006 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 320 CDI 4-matic (251.125) | 2006 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 350 (251.056, 251.156) | 2007 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 350 4-matic (251.065, 251.165) | 2006 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 350 CDI 4-matic (251.022, 251.122) | 2009 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 350 CDI 4-matic (251.023, 251.123) | 2010 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 350 CDI 4-matic (251.124, 251.125) | 2006 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 350 CGI 4-matic (251.057, 251.157) | 2006 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 500 4-matic (251.072, 251.172) | 2007 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 500 4-matic (251.075, 251.175) | 2006 - present |
| MERCEDES-BENZ | R-CLASS (W251 V251) | R 63 AMG 4-matic (251.077, 251.177) | 2006 - present |
Product data sheet / warranty card
