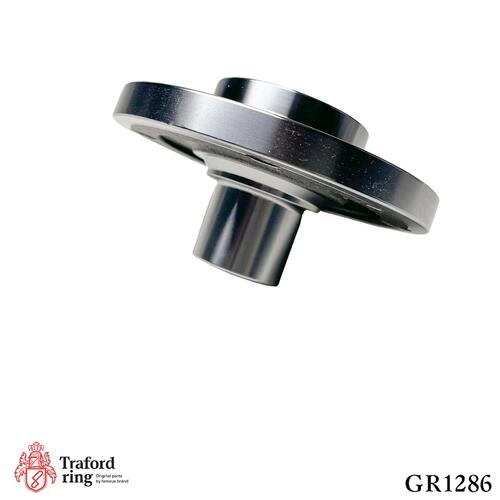

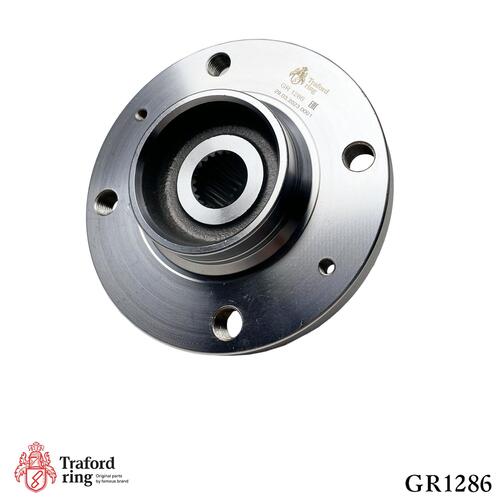

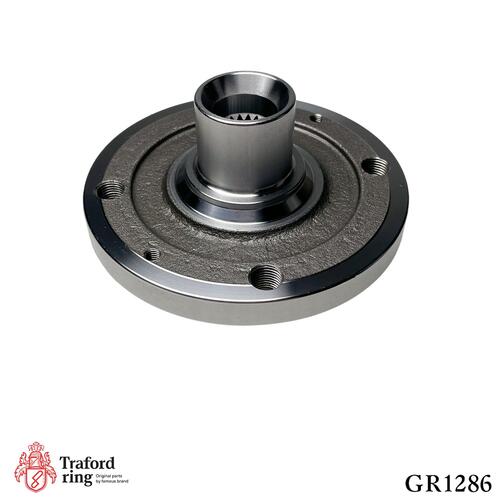

Wheel Hub (front) Peugeot 206 (98-)/Citroen C3 (02-)
Product code:
GR 1286
OEM number:
3307.76
| Installation side: | Front, left/right |
|---|---|
| Inner diameter, mm | 37 |
| Outer diameter, mm | 129,5 |
| Height, mm | 68,5 |
| Design features: | without bearing |
| Number of teeth | 21 |
| Bolt Pattern (PCD) | 4-M12x1.25-108 |
| Weight, kg. | 1.75 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| CITROEN | C2 (JM_) | 1.1 | 2003 - present |
|---|---|---|---|
| CITROEN | C2 (JM_) | 1.4 | 2003 - present |
| CITROEN | C2 (JM_) | 1.4 16V | 2006 - present |
| CITROEN | C2 (JM_) | 1.4 HDi | 2003 - present |
| CITROEN | C2 (JM_) | 1.6 | 2003 - present |
| CITROEN | C2 (JM_) | 1.6 HDi | 2005 - present |
| CITROEN | C2 (JM_) | 1.6 VTS | 2005 - present |
| CITROEN | C3 I (FC_) | 1.1 i | 2002 - present |
| CITROEN | C3 I (FC_) | 1.4 16V | 2003 - present |
| CITROEN | C3 I (FC_) | 1.4 16V HDi | 2002 - present |
| CITROEN | C3 I (FC_) | 1.4 HDi | 2002 - present |
| CITROEN | C3 I (FC_) | 1.4 i | 2002 - present |
| CITROEN | C3 I (FC_) | 1.6 16V | 2002 - present |
| CITROEN | C3 I (FC_) | 1.6 16V HDi | 2005 - present |
| CITROEN | C3 I (FC_) | 1.4 i Bivalent | 2002 - present |
| CITROEN | C3 II | 1.0 VTi 68 | 2012 - present |
| CITROEN | C3 II | 1.1 | 2009 - present |
| CITROEN | C3 II | 1.2 THP 110 | 2014 - present |
| CITROEN | C3 II | 1.2 VTi 82 | 2012 - present |
| CITROEN | C3 II | 1.4 | 2009 - present |
| CITROEN | C3 II | 1.4 HDi 70 | 2009 - present |
| CITROEN | C3 II | 1.4 VTi | 2009 - present |
| CITROEN | C3 II | 1.4 VTi 95 | 2009 - present |
| CITROEN | C3 II | 1.6 BlueHDi 100 | 2014 - present |
| CITROEN | C3 II | 1.6 BlueHDi 75 | 2015 - present |
| CITROEN | C3 II | 1.6 HDi | 2009 - present |
| CITROEN | C3 II | 1.6 HDi 110 | 2009 - present |
| CITROEN | C3 II | 1.6 HDi 115 | 2012 - present |
| CITROEN | C3 II | 1.6 HDi 90 | 2009 - present |
| CITROEN | C3 II | 1.6 VTi 120 | 2009 - present |
| CITROEN | C3 II | 1.4 LPG | 2013 - present |
| CITROEN | C3 III (SX) | 1.2 THP 110 | 2016 - present |
| CITROEN | C3 III (SX) | 1.2 VTi 68 | 2016 - present |
| CITROEN | C3 III (SX) | 1.2 VTi 82 | 2016 - present |
| CITROEN | C3 III (SX) | 1.6 BlueHDi 100 | 2016 - present |
| CITROEN | C3 III (SX) | 1.6 BlueHDi 75 | 2016 - present |
| CITROEN | C3 III (SX) | 1.6 VTi | 2017 - present |
| CITROEN | DS3 | 1.2 THP 110 | 2014 - 2015 |
| CITROEN | DS3 | 1.2 VTi 82 | 2013 - 2015 |
| CITROEN | DS3 | 1.4 HDi 70 | 2010 - 2015 |
| CITROEN | DS3 | 1.4 VTi 95 | 2010 - 2015 |
| CITROEN | DS3 | 1.4 VTi 98 | 2009 - 2015 |
| CITROEN | DS3 | 1.6 BlueHDi 100 | 2014 - 2015 |
| CITROEN | DS3 | 1.6 BlueHDi 120 | 2013 - 2015 |
| CITROEN | DS3 | 1.6 HDi 110 | 2009 - 2015 |
| CITROEN | DS3 | 1.6 HDi 115 | 2012 - 2015 |
| CITROEN | DS3 | 1.6 HDi 90 | 2009 - 2015 |
| CITROEN | DS3 | 1.6 Racing | 2011 - 2015 |
| CITROEN | DS3 | 1.6 THP 150 | 2010 - 2015 |
| CITROEN | DS3 | 1.6 THP 155 | 2010 - 2015 |
| CITROEN | DS3 | 1.6 VTi 120 | 2010 - 2015 |
| CITROEN | DS3 | 1.4 VTi 95 LPG | 2012 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.2 THP 110 | 2014 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.2 VTi 82 | 2013 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.6 BlueHDi 100 | 2014 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.6 BlueHDi 120 | 2014 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.6 HDi 90 | 2013 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.6 Racing | 2014 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.6 THP 150 | 2013 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.6 THP 155 | 2013 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.6 THP 165 | 2014 - 2015 |
| CITROEN | DS3 Convertible | DS 3 | 1.6 VTi 120 | 2013 - 2015 |
| CITROEN | SAXO (S0 S1) | 1.0 X | 1996 - 2003 |
| CITROEN | SAXO (S0 S1) | 1.1 X,SX | 1996 - 2003 |
| CITROEN | SAXO (S0 S1) | 1.4 VTS | 1996 - 2003 |
| CITROEN | SAXO (S0 S1) | 1.5 D | 1996 - 2004 |
| CITROEN | SAXO (S0 S1) | 1.6 | 1996 - 2004 |
| CITROEN | SAXO (S0 S1) | 1.6 VTL,VTR | 1996 - 2003 |
| CITROEN | SAXO (S0 S1) | 1.6 VTS | 1996 - 2003 |
| CITROEN | SAXO (S0 S1) | 1.1 BiFuel | 2000 - 2003 |
| CITROEN | XSARA (N1) | 1.4 HDi | 2003 - 2005 |
| CITROEN | XSARA (N1) | 1.4 i | 1997 - 2005 |
| CITROEN | XSARA (N1) | 1.5 D | 1997 - 2000 |
| CITROEN | XSARA (N1) | 1.6 16V | 2000 - 2005 |
| CITROEN | XSARA (N1) | 1.6 i | 1997 - 2000 |
| CITROEN | XSARA (N1) | 1.8 D | 1997 - 2000 |
| CITROEN | XSARA (N1) | 1.8 i | 1997 - 2000 |
| CITROEN | XSARA (N1) | 1.8 i 16V | 1997 - 2000 |
| CITROEN | XSARA (N1) | 1.8 i Aut. | 1997 - 2000 |
| CITROEN | XSARA (N1) | 1.9 D | 1997 - 2005 |
| CITROEN | XSARA (N1) | 1.9 SD | 1998 - 2000 |
| CITROEN | XSARA (N1) | 1.9 TD | 1997 - 2000 |
| CITROEN | XSARA (N1) | 2.0 16V | 1998 - 2005 |
| CITROEN | XSARA (N1) | 2.0 HDi 109 | 2001 - 2005 |
| CITROEN | XSARA (N1) | 2.0 HDi 90 | 1999 - 2005 |
| CITROEN | XSARA (N1) | 1.4 LPG | 1998 - 2000 |
| CITROEN | XSARA Break (N2) | 1.4 HDi | 2003 - 2005 |
| CITROEN | XSARA Break (N2) | 1.4 i | 1997 - 2005 |
| CITROEN | XSARA Break (N2) | 1.5 D | 1997 - 2000 |
| CITROEN | XSARA Break (N2) | 1.6 16V | 2000 - 2005 |
| CITROEN | XSARA Break (N2) | 1.6 i | 1997 - 2000 |
| CITROEN | XSARA Break (N2) | 1.8 D | 1997 - 2000 |
| CITROEN | XSARA Break (N2) | 1.8 i | 1997 - 2000 |
| CITROEN | XSARA Break (N2) | 1.8 i 16V | 1997 - 2000 |
| CITROEN | XSARA Break (N2) | 1.8 i Aut. | 1997 - 2000 |
| CITROEN | XSARA Break (N2) | 1.9 D | 1997 - 2005 |
| CITROEN | XSARA Break (N2) | 1.9 TD | 1997 - 2000 |
| CITROEN | XSARA Break (N2) | 2.0 16V | 1998 - 2005 |
| CITROEN | XSARA Break (N2) | 2.0 HDi 109 | 2001 - 2005 |
| CITROEN | XSARA Break (N2) | 2.0 HDI 90 | 1999 - 2005 |
| CITROEN | XSARA Coupe (N0) | 1.4 HDi | 2003 - 2005 |
| CITROEN | XSARA Coupe (N0) | 1.4 i | 1998 - 2005 |
| CITROEN | XSARA Coupe (N0) | 1.6 16V | 2000 - 2005 |
| CITROEN | XSARA Coupe (N0) | 1.6 i | 1998 - 2000 |
| CITROEN | XSARA Coupe (N0) | 1.8 i | 1998 - 2000 |
| CITROEN | XSARA Coupe (N0) | 1.8 i 16V | 1998 - 2000 |
| CITROEN | XSARA Coupe (N0) | 1.9 D | 1998 - 2005 |
| CITROEN | XSARA Coupe (N0) | 1.9 TD | 1998 - 2000 |
| CITROEN | XSARA Coupe (N0) | 2.0 16V | 2000 - 2005 |
| CITROEN | XSARA Coupe (N0) | 2.0 HDi 109 | 2001 - 2005 |
| CITROEN | XSARA Coupe (N0) | 2.0 HDI 90 | 1999 - 2005 |
| CITROEN | XSARA Coupe (N0) | 2.0 i 16V | 1998 - 2005 |
| PEUGEOT | 1007 (KM_) | 1.4 | 2005 - present |
| PEUGEOT | 1007 (KM_) | 1.4 16V | 2005 - present |
| PEUGEOT | 1007 (KM_) | 1.4 HDi | 2005 - present |
| PEUGEOT | 1007 (KM_) | 1.6 16V | 2005 - present |
| PEUGEOT | 1007 (KM_) | 1.6 HDi | 2007 - present |
| PEUGEOT | 106 II (1) | 1.0 i | 1996 - 2001 |
| PEUGEOT | 106 II (1) | 1.1 i | 1996 - 2004 |
| PEUGEOT | 106 II (1) | 1.4 i | 1996 - 2004 |
| PEUGEOT | 106 II (1) | 1.5 D | 1996 - 2007 |
| PEUGEOT | 106 II (1) | 1.6 i | 1996 - 2001 |
| PEUGEOT | 106 II (1) | 1.6 S16 | 1996 - 2004 |
| PEUGEOT | 106 II (1) | Electric | 1996 - 2004 |
| PEUGEOT | 106 wagon (1_) | 1 | 1991 - 2001 |
| PEUGEOT | 106 wagon (1_) | 1.5 D | 1996 - 2001 |
| PEUGEOT | 206 CC (2D) | 1.6 16V | 2000 - present |
| PEUGEOT | 206 CC (2D) | 1.6 HDi 110 | 2005 - present |
| PEUGEOT | 206 CC (2D) | 2.0 S16 | 2000 - present |
| PEUGEOT | 206 Hatchback (2A/C) | 1.1 i | 1998 - present |
| PEUGEOT | 206 Hatchback (2A/C) | 1.4 16V | 2003 - present |
| PEUGEOT | 206 Hatchback (2A/C) | 1.4 HDi eco 70 | 2001 - present |
| PEUGEOT | 206 Hatchback (2A/C) | 1.4 i | 1998 - present |
| PEUGEOT | 206 Hatchback (2A/C) | 1.6 16V | 2000 - 2005 |
| PEUGEOT | 206 Hatchback (2A/C) | 1.6 HDi 110 | 2004 - present |
| PEUGEOT | 206 Hatchback (2A/C) | 1.6 i | 1998 - 2000 |
| PEUGEOT | 206 Hatchback (2A/C) | 1.9 D | 1998 - 2001 |
| PEUGEOT | 206 Hatchback (2A/C) | 2.0 HDI 90 | 1999 - present |
| PEUGEOT | 206 Hatchback (2A/C) | 2.0 RC | 2003 - present |
| PEUGEOT | 206 Hatchback (2A/C) | 2.0 S16 | 1999 - 2000 |
| PEUGEOT | 206 Hatchback (2A/C) | 1.4 LPG | 2006 - 2007 |
| PEUGEOT | 206 SW (2E/K) | 1.1 | 2002 - present |
| PEUGEOT | 206 SW (2E/K) | 1.4 | 2002 - present |
| PEUGEOT | 206 SW (2E/K) | 1.4 16V | 2003 - present |
| PEUGEOT | 206 SW (2E/K) | 1.4 HDi | 2002 - present |
| PEUGEOT | 206 SW (2E/K) | 1.6 16V | 2002 - present |
| PEUGEOT | 206 SW (2E/K) | 1.6 HDi 110 | 2004 - present |
| PEUGEOT | 206 SW (2E/K) | 2.0 16V | 2002 - 2007 |
| PEUGEOT | 206 SW (2E/K) | 2.0 HDi | 2002 - present |
| PEUGEOT | 206 Saloon | 1.4 | 2007 - present |
| PEUGEOT | 206 Saloon | 1.4 HDi eco 70 | 2008 - present |
| PEUGEOT | 206 Saloon | 1.6 16V | 2007 - present |
| PEUGEOT | 206+ (T3E) | 1.1 | 2009 - present |
| PEUGEOT | 206+ (T3E) | 1.4 HDi eco 70 | 2009 - present |
| PEUGEOT | 206+ (T3E) | 1.4 i | 2009 - present |
| PEUGEOT | 207 (WA_ WC_) | 1.4 | 2006 - present |
| PEUGEOT | 207 (WA_ WC_) | 1.4 16V | 2006 - present |
| PEUGEOT | 207 (WA_ WC_) | 1.4 HDi | 2006 - present |
| PEUGEOT | 207 (WA_ WC_) | 1.6 | 2008 - present |
| PEUGEOT | 207 (WA_ WC_) | 1.6 16V | 2006 - present |
| PEUGEOT | 207 (WA_ WC_) | 1.6 16V RC | 2007 - present |
| PEUGEOT | 207 (WA_ WC_) | 1.6 16V Turbo | 2006 - present |
| PEUGEOT | 207 (WA_ WC_) | 1.6 16V VTi | 2007 - present |
| PEUGEOT | 207 (WA_ WC_) | 1.6 HDi | 2006 - 2013 |
| PEUGEOT | 207 (WA_ WC_) | 1.6 HDi 110 | 2009 - present |
| PEUGEOT | 207 CC (WD_) | 1.6 16V | 2007 - present |
| PEUGEOT | 207 CC (WD_) | 1.6 16V Turbo | 2007 - present |
| PEUGEOT | 207 CC (WD_) | 1.6 HDi | 2007 - present |
| PEUGEOT | 207 SW (WK_) | 1.4 | 2007 - present |
| PEUGEOT | 207 SW (WK_) | 1.4 16V | 2007 - present |
| PEUGEOT | 207 SW (WK_) | 1.6 16V | 2007 - present |
| PEUGEOT | 207 SW (WK_) | 1.6 16V RC | 2007 - present |
| PEUGEOT | 207 SW (WK_) | 1.6 16V Turbo | 2007 - present |
| PEUGEOT | 207 SW (WK_) | 1.6 HDi | 2007 - 2012 |
| PEUGEOT | 207 Saloon | 1.4 | 2007 - present |
| PEUGEOT | 208 Box | 1.6 BlueHDi 75 | 2015 - present |
| PEUGEOT | 208 | 1 | 2012 - present |
| PEUGEOT | 208 | 1.2 | 2012 - present |
| PEUGEOT | 208 | 1.2 THP | 2013 - present |
| PEUGEOT | 208 | 1.4 HDi | 2012 - present |
| PEUGEOT | 208 | 1.4 VTi | 2012 - present |
| PEUGEOT | 208 | 1.6 | 2012 - present |
| PEUGEOT | 208 | 1.6 BlueHDi 100 | 2015 - present |
| PEUGEOT | 208 | 1.6 BlueHDi 120 | 2013 - present |
| PEUGEOT | 208 | 1.6 GTi | 2012 - present |
| PEUGEOT | 208 | 1.6 HDi | 2012 - present |
| PEUGEOT | 208 | 1.6 HDi / BlueHDi 75 | 2013 - present |
| PEUGEOT | 208 | 1.6 THP 165 | 2015 - present |
| PEUGEOT | 306 (7B N3 N5) | 1.1 | 1994 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 1.4 SL | 1994 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 1.6 | 2000 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 1.6 SR | 1994 - 2000 |
| PEUGEOT | 306 (7B N3 N5) | 1.8 | 1995 - 1997 |
| PEUGEOT | 306 (7B N3 N5) | 1.8 16V | 1997 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 1.8 ST | 1994 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 1.9 D | 1994 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 1.9 SLD | 1994 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 1.9 SRDT | 1994 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 2 | 1997 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 2.0 HDI 90 | 1999 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 2.0 S16 | 1994 - 2001 |
| PEUGEOT | 306 (7B N3 N5) | 2.0 ST | 1994 - 2001 |
| PEUGEOT | 306 Box Body / Estate (N_ 7_) | 1.9 D | 1994 - 1999 |
| PEUGEOT | 306 Box Body / Hatchback | 1.1 | 1993 - 1994 |
| PEUGEOT | 306 Box Body / Hatchback | 1.4 | 1996 - 2001 |
| PEUGEOT | 306 Box Body / Hatchback | 1.8 D | 1993 - 1999 |
| PEUGEOT | 306 Box Body / Hatchback | 1.9 D | 1997 - 2001 |
| PEUGEOT | 306 Box Body / Hatchback | 1.9 STD | 1994 - 1995 |
| PEUGEOT | 306 Break (7E N3 N5) | 1.4 | 1997 - 2002 |
| PEUGEOT | 306 Break (7E N3 N5) | 1.6 | 1997 - 2002 |
| PEUGEOT | 306 Break (7E N3 N5) | 1.8 | 1997 - 2002 |
| PEUGEOT | 306 Break (7E N3 N5) | 1.8 16V | 1997 - 2002 |
| PEUGEOT | 306 Break (7E N3 N5) | 1.9 D | 1997 - 2002 |
| PEUGEOT | 306 Break (7E N3 N5) | 1.9 TD | 1997 - 2002 |
| PEUGEOT | 306 Break (7E N3 N5) | 2 | 1997 - 2002 |
| PEUGEOT | 306 Break (7E N3 N5) | 2.0 HDI 90 | 1999 - 2002 |
| PEUGEOT | 306 Convertible (7D N3 N5) | 1.6 | 1996 - 2002 |
| PEUGEOT | 306 Convertible (7D N3 N5) | 1.8 | 1994 - 2002 |
| PEUGEOT | 306 Convertible (7D N3 N5) | 1.8 16V | 2000 - 2002 |
| PEUGEOT | 306 Convertible (7D N3 N5) | 2 | 1994 - 2002 |
| PEUGEOT | 306 Convertible (7D N3 N5) | 2.0 16V | 1997 - 2002 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 1.1 | 1993 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 1.4 | 1993 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 1.6 | 1993 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 1.8 | 1993 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 1.8 16V | 1997 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 1.8 D | 1993 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 1.9 D | 1993 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 1.9 DT | 1993 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 2.0 16V | 1997 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 2.0 HDI 90 | 1999 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 2.0 S16 | 1993 - 2001 |
| PEUGEOT | 306 Hatchback (7A 7C N3 N5) | 2.0 XSi | 1993 - 2001 |
Product data sheet / warranty card
