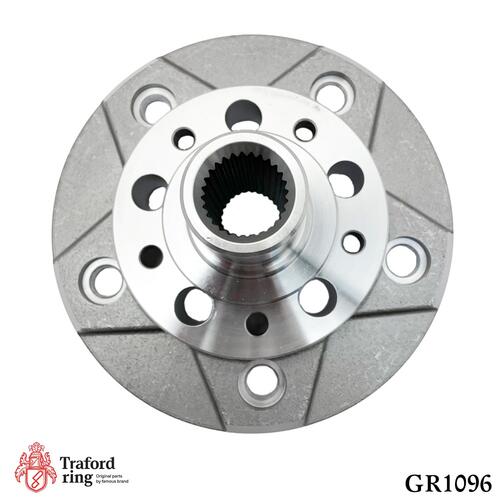

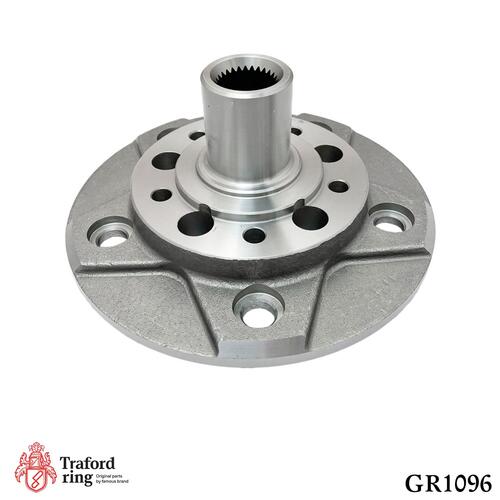

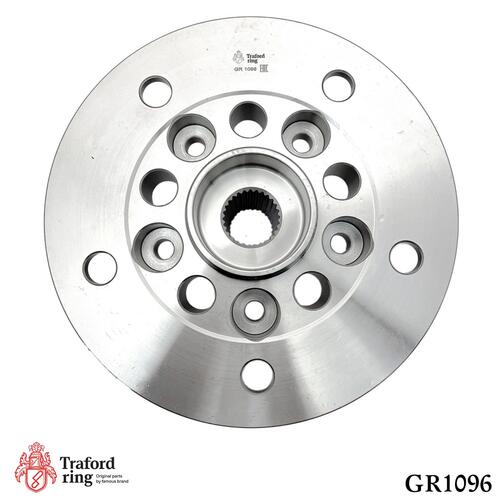

Wheel Hub (front) Ford Transit (00-)
Product code:
GR 1096
OEM number:
4507717, 4514129, YC151104AA, YC1W1104AA
| Installation side: | Front, left/right |
|---|---|
| Inner diameter, mm | 45 |
| Outer diameter, mm | 208 |
| Height, mm | 98 |
| Number of teeth | 28 |
| Bolt Pattern (PCD) | 5-15,5-160 |
| Weight, kg. | 4,3 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| FORD | TRANSIT Box (FA_ _) | 2.4 TDE | 2001 - 2006 |
|---|---|---|---|
| FORD | TRANSIT Box (FA_ _) | 2.4 TDCi | 2004 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.4 TD | 2000 - 2003 |
| FORD | TRANSIT Box (FA_ _) | 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) | 2000 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.4 DI (FAA_, FAB_, FAC_, FAD_) | 2000 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.3 16V RWD (FAA_, FAB_, FAC_) | 2001 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.3 | 2001 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.0 TDCi | 2002 - 2006 |
| FORD | TRANSIT Box (FA_ _) | 2.0 DI (FAE_, FAF_, FAG_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 TDE (F_C_, F_B_, F_A_) | 2001 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 TDE | 2004 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 TDCi | 2004 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 DI RWD (F_B_, F_C_, F_A_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 DI RWD (F_B_, F_C_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.4 DI (F_B_, F_C_, F_A_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.3 16V RWD (F_B_, F_C_, F_A_) | 2000 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.0 TDCi (F_F_, F_E_, F_G_) | 2002 - 2006 |
| FORD | TRANSIT Bus (FD_ _ FB_ _ FS_ _ FZ_ _ FC_ _) | 2.0 DI (F_E_, F_F_, F_G_) | 2000 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.4 TDE | 2001 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.4 TDCi | 2004 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.4 DI (F_A_, F_B_, F_C_, F_D_) | 2000 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.3 16V (F_A_, F_B_, F_C_, F_D_) | 2001 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.0 TDCi (F_E_, F_F_) | 2002 - 2006 |
| FORD | TRANSIT Platform/Chassis (FM_ _ FN_ _) | 2.0 DI (F_E_, F_F_) | 2000 - 2006 |
