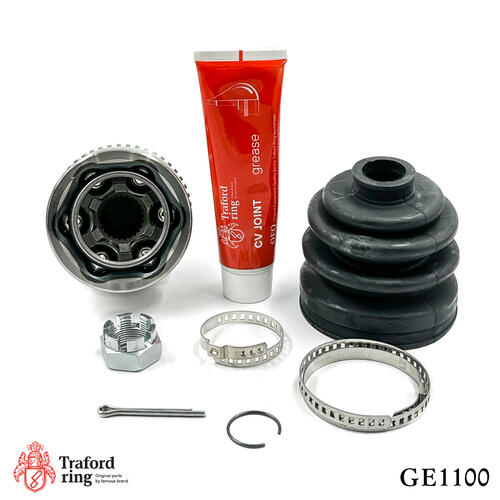

CV Joint outer with ABS ring for Hyundai Sonata (05-) 2.0i/2.4i
Product code:
GE 1100
OEM number:
49500-3K010, 49500-3K410, 49500-3K110

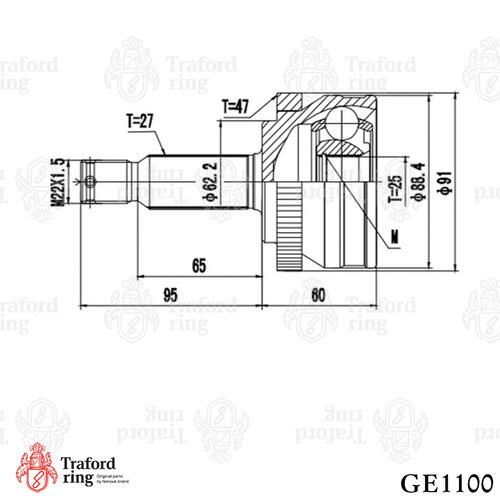

| Gearbox type | MT/AT |
|---|---|
| Installation side | front |
| Length, mm | 155 |
| Outer number of teeth on wheel side | 27 |
| Inner number of teeth on the wheel side | 25 |
| Number of ABS teeth | 47 |
| Outer diameter, mm | 88,4 |
| ABS ring outer diameter, mm | 91 |
| Thread size | М22*1,5 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| HYUNDAI | GRANDEUR (TG) | 2.4 (engine G4KC) | 2006 - 2008 |
|---|---|---|---|
| HYUNDAI | SONATA V (NF) | 2.0 VVTi GLS (engine G4KA / G4KD) | 2005 - 2010 |
| HYUNDAI | SONATA V (NF) | 2.0 GLSI (engine G4KD) | 2008 - 2010 |
| HYUNDAI | SONATA V (NF) | 2.0 CRDi (engine D4EA-F) | 2006 - 2010 |
| HYUNDAI | SONATA V (NF) | 2.4 (engine G4KE / G4KC) | 2005 - 2010 |
| HYUNDAI | SONATA VI (YF) | 2.4 (engine G4KC) | 2009 - 2015 |
| HYUNDAI | SONATA VI (YF) | 2 (engine G4KD) | 2009 - 2014 |
Product data sheet / warranty card
