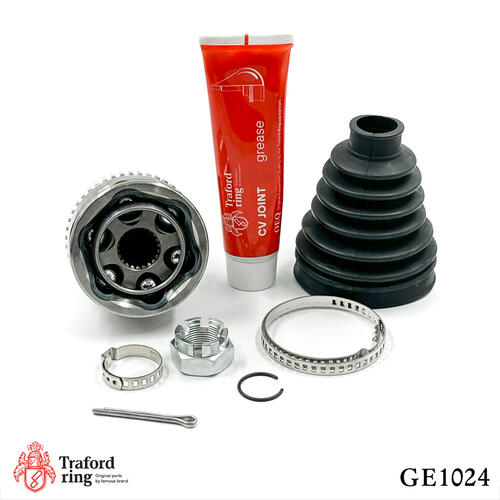

CV Joint outer with ABS ring for Kia CEED (07-)/Cerato (09-)/Soul (08-) 1.4i/1.6i MT
Product code:
GE 1024
OEM number:
49500-1H010, 49501-1H010, 49591-1H011, 49591-1H012, 49500-2L010, 49500-1L010, 49501-1L010

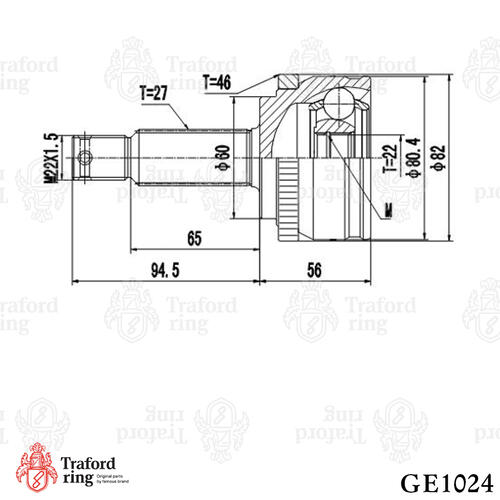

| Gearbox type | MT |
|---|---|
| Installation side | front |
| Length, mm | 151 |
| Outer number of teeth on wheel side | 27 |
| Inner number of teeth on the wheel side | 22 |
| Number of ABS teeth | 46 |
| Outer diameter, mm | 81 |
| ABS ring outer diameter, mm | 82 |
| Thread size | М22х1,5 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| KIA | CEED Hatchback (ED) | 1.6 (engine G4FC) | 2006 - 2012 |
|---|---|---|---|
| KIA | CEED Hatchback (ED) | 1.4 (engine G4FA) | 2006 - 2012 |
| KIA | CEED Hatchback (ED) | 1.6 CVVT (engine G4FC) | 2010 - 2012 |
| KIA | CEED Hatchback (ED) | 1.4 CVVT (engine G4FA-L) | 2009 - 2012 |
| KIA | CEED SW (ED) | 1.4 (engine G4FA) | 2007 - 2012 |
| KIA | CEED SW (ED) | 1.6 (engine G4FC) | 2007 - 2012 |
| KIA | CEED SW (ED) | 1.6 CVVT (engine G4FC) | 2009 - 2012 |
| KIA | CEED SW (ED) | 1.4 CVVT (engine G4FA-L) | 2009 - 2012 |
| KIA | PRO CEED (ED) | 1.4 (engine G4FA) | 2008 - 2012 |
| KIA | PRO CEED (ED) | 1.6 (engine G4FC) | 2008 - 2012 |
| KIA | PRO CEED (ED) | 1.6 CVVT (engine G4FC) | 2010 - 2013 |
| KIA | PRO CEED (ED) | 1.4 CVVT (engine G4FA-L) | 2010 - 2012 |
Product data sheet / warranty card
