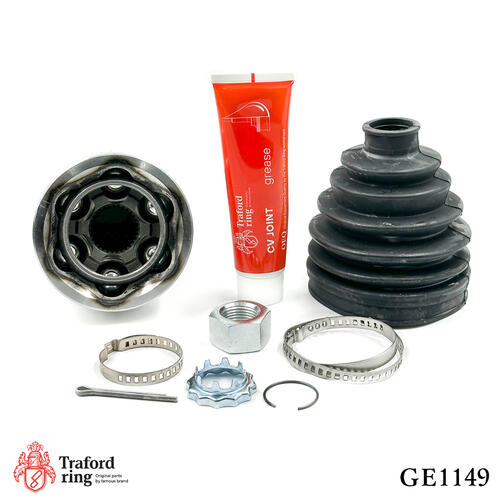

CV Joint outer with ABS ring (31 spline) for Ford Transit Tourneo (06-) 2.2TDCi
Product code:
GE 1149
OEM number:
1512911, 1512912, 1520498

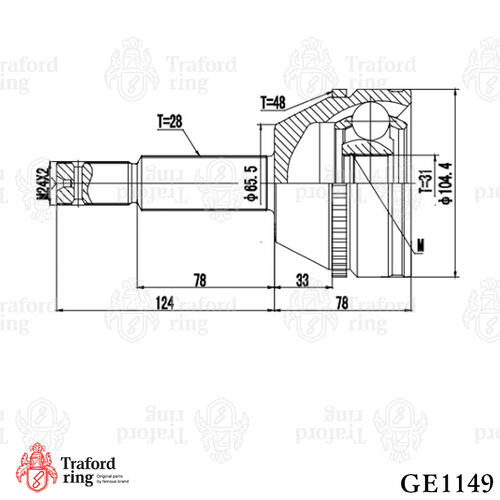

| Gearbox type | MT |
|---|---|
| Installation side | front |
| Length, mm | 202 |
| Outer number of teeth on wheel side | 28 |
| Inner number of teeth on the wheel side | 31 |
| Number of ABS teeth | 48 |
| Outer diameter, mm | 104,4 |
| Thread size | М24х2 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| FORD | TRANSIT Box | 2.2 TDCi (engine QVFA) | 2006 - 2014 |
|---|---|---|---|
| FORD | TRANSIT Bus | 2.2 TDCi (engine QVFA) | 2006 - 2014 |
| FORD | TRANSIT Platform/Chassis | 2.2 TDCi (engine SRFA, SRFB, SRFC, SRFD, SRFE / QVFA) | 2006 - 2014 |
| FORD | TRANSIT TOURNEO | 2.2 TDCi (engine PGFA, PGFB, UHFA, UHFB / QWFA / SRFA, SRFB, SRFC, SRFD, SRFE / QVFA) | 2006 - 2014 |
