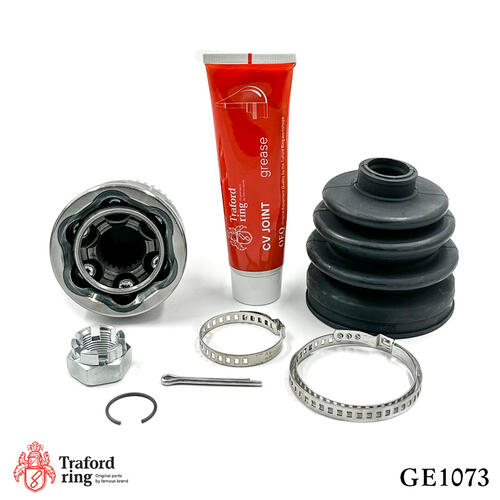

CV Joint outer with ABS ring (23 spline) for Hyundai Elantra XD (00-) 1.6i MT
Product code:
GE 1073
OEM number:
49500-2D010, 49500-2D013, 49501-2D012, 49500-2D012, 49501-2D010, 49501-2D013

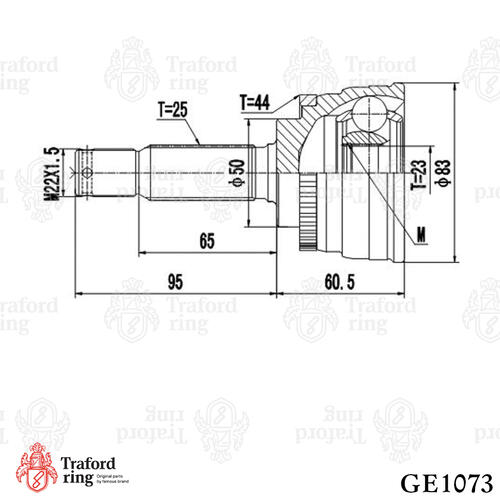

| Gearbox type | MT |
|---|---|
| Installation side | front |
| Length, mm | 155,5 |
| Outer number of teeth on wheel side | 25 |
| Inner number of teeth on the wheel side | 23 |
| Number of ABS teeth | 44 |
| Outer diameter, mm | 83 |
| Thread size | М22х1,5 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| HYUNDAI | COUPE (GK) | 1.6 16V (engine G4ED-G) | 2002 - 2009 |
|---|---|---|---|
| HYUNDAI | ELANTRA (XD) | 1.6 (engine G4GR / G4ED-G) | 2000 - 2006 |
| HYUNDAI | ELANTRA (XD) | 2.0 CRDi (engine D4EA) | 2001 - 2006 |
| HYUNDAI | ELANTRA Saloon (XD) | 1.6 (engine G4GR / G4ED-G) | 2000 - 2006 |
| HYUNDAI | ELANTRA Saloon (XD) | 2.0 CRDi (engine D4EA) | 2001 - 2006 |
Product data sheet / warranty card
