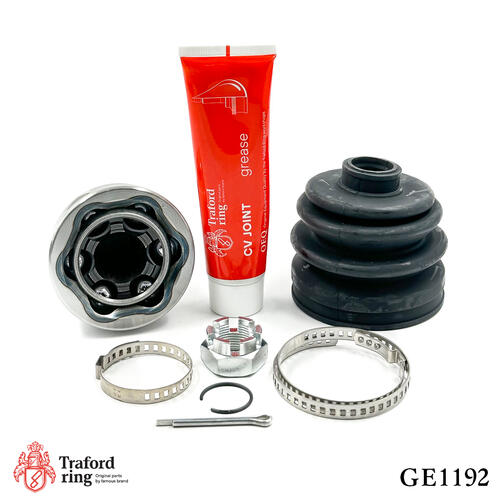

CV Joint outer for Hyundai Elantra XD (00-) 1.6i MT
Product code:
GE 1192
OEM number:
49500-2D000, 49501-2D002, MB297565, MB526464, MB297981
| Gearbox type | MT |
|---|---|
| Installation side | front |
| Length, mm | 155,5 |
| Outer number of teeth on wheel side | 25 |
| Inner number of teeth on the wheel side | 23 |
| Outer diameter, mm | 83 |
| Thread size | М22*1,5 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| HYUNDAI | LANTRA II (J-2) | ELANTRA | 1.6 i (engine G4GR) | 1995 - 2000 |
|---|---|---|---|
| MAZDA | 323 II (BD) | 1.5 (engine E5) | 1981 - 1985 |
| MITSUBISHI | COLT I (A15_A) | 1.4 Turbo (A152A) (engine 4G12 T (04.82-01.84)) | 1981 - 1984 |
| MITSUBISHI | COLT I (A15_A) | 1.4 GLX,GT (A152A) (engine 4G12 (05.79-01.84)) | 1979 - 1984 |
| MITSUBISHI | COLT II (C1_A) | 1.8 GL Diesel (C14A) (engine 4D65 / 4D65 (09.86-04.88)) | 1984 - 1988 |
| MITSUBISHI | COLT II (C1_A) | 1.6 Turbo ECi (C13A) (engine G32BT / 4G32 T/C (02.84-04.88)) | 1984 - 1988 |
| MITSUBISHI | COLT II (C1_A) | 1.5 GLX (C12A) (engine G15B (09.85-04.88)) | 1985 - 1988 |
| MITSUBISHI | CORDIA (A21_A, AB, AC) | 1.8 Turbo ECi (A213A) (engine 4G62 T (01.86-12.86)) | 1984 - 1989 |
| MITSUBISHI | CORDIA (A21_A, AB, AC) | 1.8 GSL (A215A) (engine 4G37 (10.86-12.86)) | 1986 - 1989 |
| MITSUBISHI | CORDIA (A21_A, AB, AC) | 1.6 Turbo (A212A) (engine 4G32 T (07.83-07.84) / 4G32 T) | 1982 - 1985 |
| MITSUBISHI | GALANT III (E1_A) | 2.0 GLS (E15A) (engine G63B (06.86-12.87) / 4G63 (SOHC 8V)) | 1984 - 1990 |
| MITSUBISHI | GALANT III (E1_A) | 1.8 Turbo-D (E14A) (engine 4D65 T) | 1984 - 1990 |
| MITSUBISHI | LANCER F (A15_) | 1.4 Turbo (engine 4G12 T (03.83-01.84)) | 1983 - 1984 |
| MITSUBISHI | LANCER I (A7_) | 1.6 (A73A) (engine 4G32 GS (01.78-12.78)) | 1978 - 1979 |
| MITSUBISHI | LANCER II (A17_) | 1.6 (A174) (engine 4G32 GS) | 1979 - 1983 |
| MITSUBISHI | LANCER III (C1_A, C6_A) | 1.8 Diesel (C14AS) (engine 4D65 (09.86-04.88)) | 1986 - 1988 |
| MITSUBISHI | LANCER III Station Wagon (C1_V, C3_V) | 1.8 D (C14V) (engine 4D65 (09.86-05.92)) | 1986 - 1992 |
| MITSUBISHI | LANCER III Station Wagon (C1_V, C3_V) | 1.8 4WD (C37V) (engine 4G37 / 4G37 (01.87-12.87) / G37B (01.87-08.89)) | 1987 - 1992 |
| MITSUBISHI | LANCER IV Hatchback (C6_A, C7_A) | 1.8 4WD (C77A) (engine 4G37) | 1989 - 1992 |
| MITSUBISHI | SPACE WAGON (D0_V/W) | 1.8 GLX (D05V, D05W) (engine 4G37 (01.84-12.87)) | 1984 - 1988 |
| MITSUBISHI | SPACE WAGON (D0_V/W) | 1.8 4WD (D05V, D05W) (engine 4G37 (10.87-12.87)) | 1987 - 1988 |
| MITSUBISHI | TREDIA (A21_) | 1.8 Turbo (engine G62B) | 1984 - 1986 |
| MITSUBISHI | TREDIA (A21_) | 1.8 GLS (A215) (engine 4G37 (08.84-07.86)) | 1984 - 1986 |
Product data sheet / warranty card
