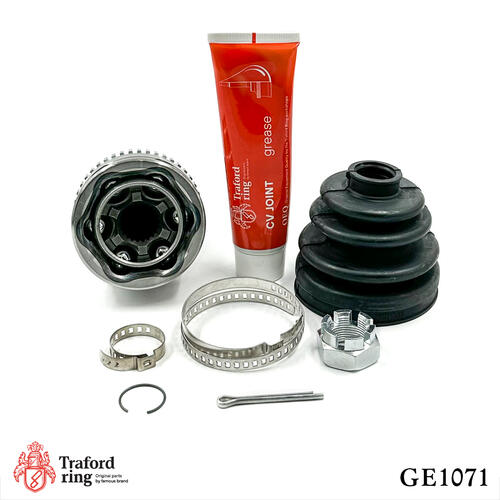

CV Joint outer for Hyundai i30 (07-) 1.4i/1.6i MT
Product code:
GE 1071
OEM number:
49500-1M010 , 49501-1M010, 49591-A63A5, 49500-A6300, 49501-2L010, 49501-A6300, 49591-A63A0

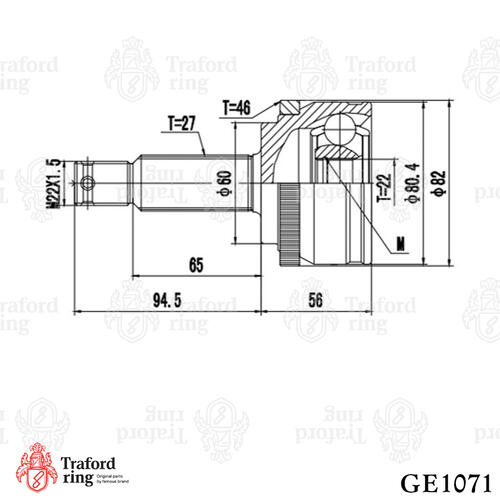

| Gearbox type | MT |
|---|---|
| Installation side | front |
| Length, mm | 150,5 |
| Outer number of teeth on wheel side | 27 |
| Inner number of teeth on the wheel side | 22 |
| Number of ABS teeth | 46 |
| Outer diameter, mm | 80,4 |
| ABS ring outer diameter, mm | 82 |
| Thread size | М22х1,5 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| HYUNDAI | i30 Coupe | 1.6 MPI (engine G4FC) | 2016 - н.в. |
|---|---|---|---|
| HYUNDAI | i30 Coupe | 1.6 GDI (engine G4FD) | 2013 - н.в. |
| HYUNDAI | i30 Coupe | 1.4 (engine G4LC) | 2014 - н.в. |
| HYUNDAI | i30 Estate (FD) | 1.6 (engine G4FC) | 2008 - 2012 |
| HYUNDAI | i30 Estate (FD) | 1.4 (engine G4FA) | 2007 - 2012 |
| KIA | CERATO II Saloon (TD) | 1.6 CVVT (engine G4FC) | 2009 - н.в. |
Product data sheet / warranty card
