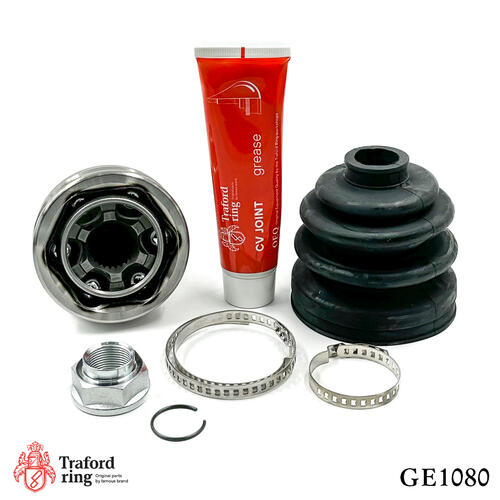

CV Joint outer front (26 spline) for Chery Tiggo T11 (06-) 4WD
Product code:
GE 1080
OEM number:
T11XLB3AH2203030C

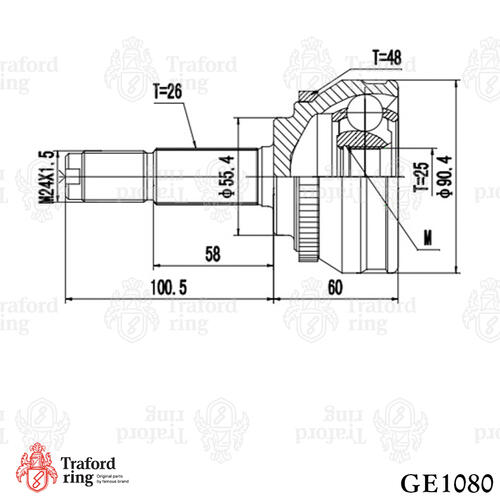

| Gearbox type | MT |
|---|---|
| Installation side | front |
| Length, mm | 159,3 |
| Outer number of teeth on wheel side | 26 |
| Inner number of teeth on the wheel side | 25 |
| Number of ABS teeth | 48 |
| Outer diameter, mm | 90 |
| ABS ring outer diameter, mm | 81 |
| Thread size | М24х1.5 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| CHERY | TIGGO | 2.0 4WD (engine 4G63-S4M) | 2005 - 2009 |
|---|---|---|---|
| CHERY | TIGGO | 2.0 All-wheel Drive (engine SQR484F) | 2010 - 2014 |
| CHERY | TIGGO | 2.4 All-wheel Drive (engine 4G64-S4M) | 2005 - 2008 |
Product data sheet / warranty card
