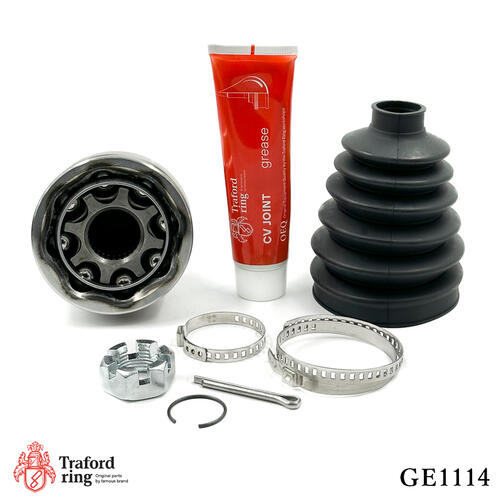

CV Joint outer (28 spline) for Ford Transit Tourneo (06-) 2.2TDCi
Product code:
GE 1114
OEM number:
BK21-3A327-AB, 1787343, RMB21-3B436-A1B, 1774273, BK21-3A328-AB, RMBK21-3B437-A1B, 1841532, 1774275, BK21-3B436-AB, 1787345, 1841533, 1774279, BK21-3B436-AC, 1841528, 2009673, 1783968, BK21-3B437-AB, 1841529

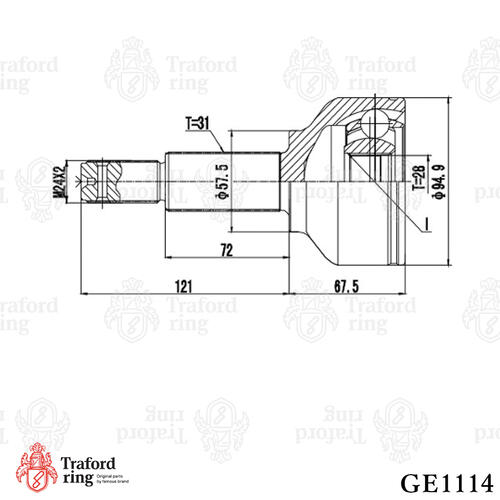

| Gearbox type | MT |
|---|---|
| Installation side | front |
| Length, mm | 188,5 |
| Outer number of teeth on wheel side | 31 |
| Inner number of teeth on the wheel side | 28 |
| Outer diameter, mm | 94,9 |
| Thread size | М24х2 |
| Design Features | 8 balls |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| FORD | TRANSIT TOURNEO | 2.2 TDCi (engine QVFA / SRFA, SRFB, SRFC, SRFD, SRFE / QWFA / PGFA, PGFB, UHFA, UHFB) | 2006 - 2014 |
|---|---|---|---|
| FORD | TRANSIT TOURNEO Bus | 2.2 (engine CYFA, CYFB, CYFC, CYFD) | 2011 - 2014 |
Product data sheet / warranty card
