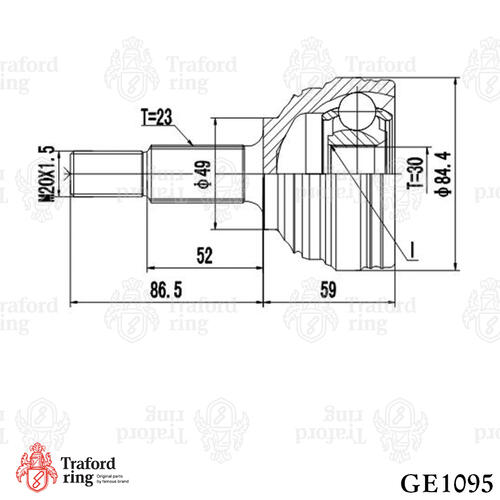

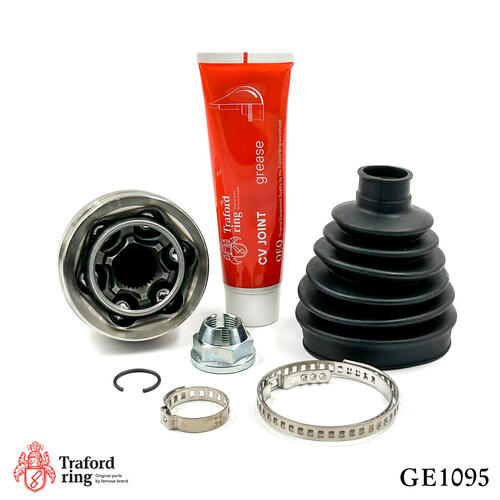

CV Joint outer (23x30 splines) for Renault Logan (04-) 1.6i
Product code:
GE 1095
OEM number:
8200499306, 7711497480, 39 10 177 23R, 7711497479, 82 00 499 304
| Installation side | front, right |
|---|---|
| Outer number of teeth on wheel side | 23 |
| Internal number of teeth on the drive side | 30 |
| Length, mm | 145 |
| Gearbox type | 5 MT |
| Transmission | JH3 |
| Thread size | М20*1,5 |
| Installation side | front, right |
| Internal number of teeth on the drive side | 30 |
| External number of teeth on the gearbox side | 23 |
| Length, mm | 116 |
| Gearbox type | 5 MT |
| Outer diameter, mm | 78,5 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| DACIA | LOGAN (LS_) | 1.6 16V (LS0M) (engine K4M 690, K4M 696) | 2006 - н.в. |
|---|---|---|---|
| DACIA | LOGAN (LS_) | 1.5 dCi (LS0K) (engine K9K 792) | 2006 - н.в. |
| DACIA | LOGAN (LS_) | 1.5 dCi (LS0J, LS0Y) (engine K9K 790) | 2005 - н.в. |
| DACIA | LOGAN MCV (KS_) | 1.6 MPI 85 (engine K7M 800) | 2010 - н.в. |
| DACIA | LOGAN MCV (KS_) | 1.6 (engine K7M 710) | 2007 - н.в. |
| DACIA | LOGAN MCV (KS_) | 1.4 (engine K7J 710) | 2007 - н.в. |
| DACIA | SANDERO | 1.6 16V (engine K4M 690) | 2011 - н.в. |
| DACIA | SANDERO | 1.5 dCi (engine K9K 790) | 2008 - н.в. |
| LADA | LARGUS Van | 1.6 (engine VAZ-K7M / VAZ- K4M) | 2012 - н.в. |
| LADA | LARGUS station wagon | 1.6 (engine VAZ- K4M / VAZ-K7M) | 2012 - н.в. |
| RENAULT | GRAND SCЙNIC III (JZ0/1_) | 1.5 dCi (engine K9K 636, K9K 836, K9K 837 / K9K 846) | 2009 - н.в. |
| RENAULT | LOGAN I (LS_) | TONDAR 90 | 1.6 (engine K4M 690) | 2007 - н.в. |
| RENAULT | LOGAN I (LS_) | TONDAR 90 | 1.5 dCi (engine K9K 792 / K9K 700, K9K 790, K9K 794) | 2007 - н.в. |
| RENAULT | LOGAN I Estate (KS_) | TONDAR 90 | 1.6 (engine K7M 710) | 2007 - н.в. |
| RENAULT | LOGAN I Estate (KS_) | TONDAR 90 | 1.4 (engine K7J 710) | 2007 - н.в. |
| RENAULT | SCENIC III (JZ0/1_) | 1.5 dCi (JZ02, JZ0R) (engine K9K 846) | 2010 - н.в. |
| RENAULT | SCENIC III (JZ0/1_) | 1.5 dCi (engine K9K 636, K9K 656, K9K 657, K9K 836, K9K 837 / K9K 830) | 2009 - н.в. |
| RENAULT | TWINGO II (CN0_) | 1.5 dCi (CN0U) (engine K9K 718) | 2008 - н.в. |
| RENAULT | TWINGO II (CN0_) | 1.2 Turbo (CN0C, CN0F) (engine D4F 780, D4F 782) | 2007 - н.в. |
| RENAULT | TWINGO II (CN0_) | 1.2 TCe 100 (CN0P) (engine D4F 780, D4F 782) | 2011 - н.в. |
| RENAULT | WIND (E4M_) | 1.2 TCe 100 (E4MA) (engine D4F 780) | 2011 - н.в. |
| RENAULT | WIND (E4M_) | 1.2 (E4MF) (engine D4F 782) | 2010 - н.в. |
| DACIA | LOGAN (LS_) | 1.6 16V (LS0M) (engine K4M 690, K4M 696) | 2006 - н.в. |
| DACIA | LOGAN (LS_) | 1.5 dCi (LS0K) (engine K9K 792) | 2006 - н.в. |
| DACIA | LOGAN (LS_) | 1.5 dCi (LS0J, LS0Y) (engine K9K 790) | 2005 - н.в. |
| DACIA | LOGAN MCV (KS_) | 1.6 MPI 85 (engine K7M 800) | 2010 - н.в. |
| DACIA | LOGAN MCV (KS_) | 1.6 (engine K7M 710) | 2007 - н.в. |
| DACIA | LOGAN MCV (KS_) | 1.4 (engine K7J 710) | 2007 - н.в. |
| DACIA | SANDERO | 1.6 16V (engine K4M 690) | 2011 - н.в. |
| DACIA | SANDERO | 1.5 dCi (engine K9K 790) | 2008 - н.в. |
| LADA | LARGUS Van | 1.6 (engine VAZ-K7M / VAZ- K4M) | 2012 - н.в. |
| LADA | LARGUS station wagon | 1.6 (engine VAZ- K4M / VAZ-K7M) | 2012 - н.в. |
| RENAULT | GRAND SCЙNIC III (JZ0/1_) | 1.5 dCi (engine K9K 636, K9K 836, K9K 837 / K9K 846) | 2009 - н.в. |
| RENAULT | LOGAN I (LS_) | TONDAR 90 | 1.6 (engine K4M 690) | 2007 - н.в. |
| RENAULT | LOGAN I (LS_) | TONDAR 90 | 1.5 dCi (engine K9K 792 / K9K 700, K9K 790, K9K 794) | 2007 - н.в. |
| RENAULT | LOGAN I Estate (KS_) | TONDAR 90 | 1.6 (engine K7M 710) | 2007 - н.в. |
| RENAULT | LOGAN I Estate (KS_) | TONDAR 90 | 1.4 (engine K7J 710) | 2007 - н.в. |
| RENAULT | SCENIC III (JZ0/1_) | 1.5 dCi (JZ02, JZ0R) (engine K9K 846) | 2010 - н.в. |
| RENAULT | SCENIC III (JZ0/1_) | 1.5 dCi (engine K9K 636, K9K 656, K9K 657, K9K 836, K9K 837 / K9K 830) | 2009 - н.в. |
| RENAULT | TWINGO II (CN0_) | 1.5 dCi (CN0U) (engine K9K 718) | 2008 - н.в. |
| RENAULT | TWINGO II (CN0_) | 1.2 Turbo (CN0C, CN0F) (engine D4F 780, D4F 782) | 2007 - н.в. |
| RENAULT | TWINGO II (CN0_) | 1.2 TCe 100 (CN0P) (engine D4F 780, D4F 782) | 2011 - н.в. |
| RENAULT | WIND (E4M_) | 1.2 TCe 100 (E4MA) (engine D4F 780) | 2011 - н.в. |
| RENAULT | WIND (E4M_) | 1.2 (E4MF) (engine D4F 782) | 2010 - н.в. |
Product data sheet / warranty card
