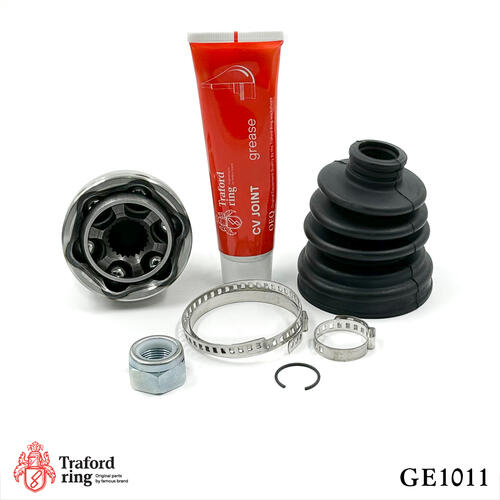

CV Joint outer (21x22 splines) for Renault Logan (04-) 1.6i
Product code:
GE 1011
OEM number:
8201045819, 6001548103, 8200985007, 8200985010, 6001547028, 391018299R, 7711497474, 39 10 163 91R

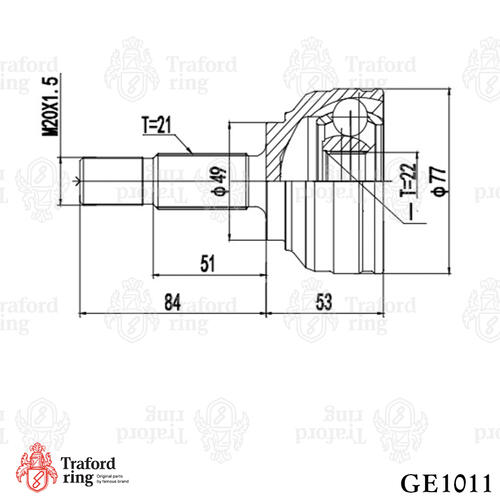

| Installation side | front, right |
|---|---|
| Outer number of teeth on wheel side | 21 |
| Inner number of teeth on the wheel side | 22 |
| Length, mm | 147 |
| Gearbox type | 5 MT |
| Thread size | М20х1,5 |
| Installation side | front |
| External number of teeth on the gearbox side | 23 |
| Internal number of teeth on the drive side | 22 |
| Length, mm | 116 |
| Gearbox type | 5 MT |
| Outer diameter, mm | 79 |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| DACIA | LOGAN (LS_) | 1.6 MPI 85 (engine K7M 800) | 2010 - н.в. |
|---|---|---|---|
| DACIA | LOGAN (LS_) | 1.6 (LSOB, LSOD, LSOF, LSOH) (engine K7M 710) | 2004 - н.в. |
| DACIA | LOGAN (LS_) | 1.4 (LSOA, LSOC, LSOE, LSOG) (engine K7J 710) | 2004 - н.в. |
| DACIA | LOGAN (LS_) | 1.2 16V (engine D4F 732) | 2006 - н.в. |
| DACIA | SANDERO | 1.6 MPI 85 (engine K7M 800) | 2010 - н.в. |
| DACIA | SANDERO | 1.6 (engine K7M 710) | 2008 - н.в. |
| DACIA | SANDERO | 1.4 (engine K7J 710) | 2008 - н.в. |
| DACIA | SANDERO | 1.2 16V (engine D4F 732) | 2008 - н.в. |
| RENAULT | LOGAN I (LS_) | TONDAR 90 | 1.6 (engine K7M 710) | 2004 - н.в. |
| RENAULT | LOGAN I (LS_) | TONDAR 90 | 1.4 (engine K7J 710) | 2004 - н.в. |
| DACIA | LOGAN (LS_) | 1.6 MPI 85 (engine K7M 800) | 2010 - н.в. |
| DACIA | LOGAN (LS_) | 1.6 (LSOB, LSOD, LSOF, LSOH) (engine K7M 710) | 2004 - н.в. |
| DACIA | LOGAN (LS_) | 1.4 (LSOA, LSOC, LSOE, LSOG) (engine K7J 710) | 2004 - н.в. |
| DACIA | LOGAN (LS_) | 1.2 16V (engine D4F 732) | 2006 - н.в. |
| DACIA | SANDERO | 1.6 MPI 85 (engine K7M 800) | 2010 - н.в. |
| DACIA | SANDERO | 1.6 (engine K7M 710) | 2008 - н.в. |
| DACIA | SANDERO | 1.4 (engine K7J 710) | 2008 - н.в. |
| DACIA | SANDERO | 1.2 16V (engine D4F 732) | 2008 - н.в. |
| RENAULT | LOGAN I (LS_) | TONDAR 90 | 1.6 (engine K7M 710) | 2004 - н.в. |
| RENAULT | LOGAN I (LS_) | TONDAR 90 | 1.4 (engine K7J 710) | 2004 - н.в. |
