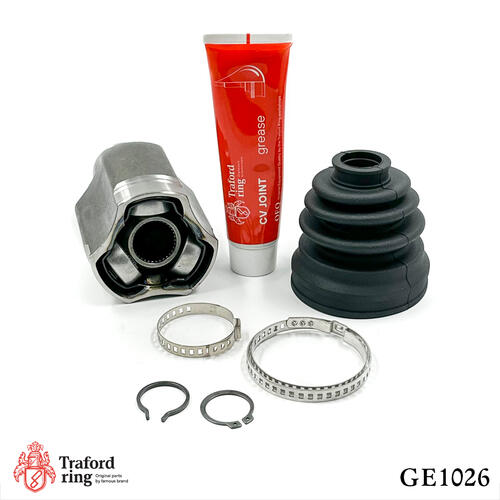

CV Joint inner for SsangYong Kyron (05-)
Product code:
GE 1026
OEM number:
4130009000, 4130009002

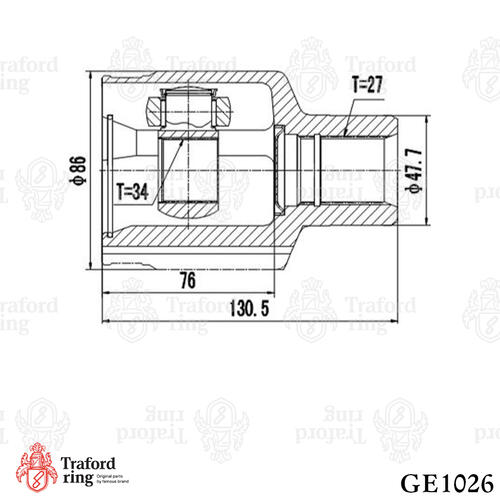

| Gearbox type | MT/AT |
|---|---|
| Installation side | front |
| Length, mm | 130,5 |
| External number of teeth on the gearbox side | 27 |
| Internal number of teeth on the drive side | 34 |
| Outer diameter, mm | 86 |
| Design Features | tripoid |
| Gearbox type | MT/AT |
| Installation side | front |
| Length, mm | 130,5 |
| External number of teeth on the gearbox side | 27 |
| Internal number of teeth on the drive side | 34 |
| Outer diameter, mm | 86 |
| Design Features | tripoid |
The manufacturer reserves the right to make changes to the design, design (change in appearance) and product packaging without prior notice.
Information on the applicability of products and related products to a specific car model is a reference.
| Manufacturer | Model | Modification | Release year |
|---|
| SSANGYONG | ACTYON I | 200 Xdi 4WD (engine D20DT) | 2006 - н.в. |
|---|---|---|---|
| SSANGYONG | ACTYON SPORTS I (QJ) | 2011 - н.в. | |
| SSANGYONG | ACTYON SPORTS I (QJ) | 2.0 Xdi 4WD (engine D20DT / D20DTR) | 2007 - н.в. |
| SSANGYONG | ACTYON SPORTS II | 2.0 Xdi 4WD (engine D20DTR) | 2012 - н.в. |
| SSANGYONG | KYRON | 2.3 4x4 (engine G23D) | 2006 - н.в. |
| SSANGYONG | KYRON | 2.7 Xdi (engine D27DT) | 2005 - н.в. |
| SSANGYONG | KYRON | 3.2 M320 4x4 (engine G32D) | 2008 - н.в. |
| SSANGYONG | REXTON (GAB_) | 3.2 (engine G32D) | 2002 - н.в. |
| SSANGYONG | REXTON (GAB_) | 2.7 Xdi 4x4 (engine D27DT) | 2006 - 2012 |
| SSANGYONG | REXTON (GAB_) | 2.7 Xdi Turbo 4x4 (engine D27DTP) | 2011 - н.в. |
| SSANGYONG | REXTON (GAB_) | 2002 - н.в. | |
| SSANGYONG | REXTON W | 2.0 Xdi (engine D20DTR) | 2012 - н.в. |
| SSANGYONG | REXTON W | 2.0 Xdi All-wheel Drive (engine D20DTR) | 2012 - н.в. |
| SSANGYONG | REXTON W | 2015 - н.в. | |
| SSANGYONG | REXTON W | 2015 - н.в. | |
| SSANGYONG | REXTON W | 2.7 Xdi All-wheel Drive (engine D27DT) | 2012 - н.в. |
| SSANGYONG | REXTON Y400 | 2.2 Xdi (POE) (engine D22DTR) | 2017 - н.в. |
| SSANGYONG | RODIUS | 3.2 4WD (engine G32D) | 2007 - н.в. |
| SSANGYONG | RODIUS | 3.2 (engine G32D) | 2005 - н.в. |
| SSANGYONG | RODIUS | 2.7 Xdi (engine D27DT) | 2005 - н.в. |
| SSANGYONG | RODIUS | 2.7 Xdi 4WD (engine D27DT) | 2005 - н.в. |
| SSANGYONG | RODIUS II TURISMO | 2.0 Xdi (engine D20DTR) | 2013 - н.в. |
| SSANGYONG | RODIUS II TURISMO | 2.0 Xdi 4WD (engine D20DTR) | 2013 - н.в. |
| SSANGYONG | RODIUS II TURISMO | 2015 - н.в. | |
| SSANGYONG | RODIUS II TURISMO | 2015 - н.в. | |
| SSANGYONG | STAVIC | 2013 - н.в. | |
| SSANGYONG | ACTYON I | 200 Xdi 4WD (engine D20DT) | 2006 - н.в. |
| SSANGYONG | ACTYON SPORTS I (QJ) | 2011 - н.в. | |
| SSANGYONG | ACTYON SPORTS I (QJ) | 2.0 Xdi 4WD (engine D20DT / D20DTR) | 2007 - н.в. |
| SSANGYONG | ACTYON SPORTS II | 2.0 Xdi 4WD (engine D20DTR) | 2012 - н.в. |
| SSANGYONG | KYRON | 2.3 4x4 (engine G23D) | 2006 - н.в. |
| SSANGYONG | KYRON | 2.7 Xdi (engine D27DT) | 2005 - н.в. |
| SSANGYONG | KYRON | 3.2 M320 4x4 (engine G32D) | 2008 - н.в. |
| SSANGYONG | REXTON (GAB_) | 3.2 (engine G32D) | 2002 - н.в. |
| SSANGYONG | REXTON (GAB_) | 2.7 Xdi 4x4 (engine D27DT) | 2006 - 2012 |
| SSANGYONG | REXTON (GAB_) | 2.7 Xdi Turbo 4x4 (engine D27DTP) | 2011 - н.в. |
| SSANGYONG | REXTON (GAB_) | 2002 - н.в. | |
| SSANGYONG | REXTON W | 2.0 Xdi (engine D20DTR) | 2012 - н.в. |
| SSANGYONG | REXTON W | 2.0 Xdi All-wheel Drive (engine D20DTR) | 2012 - н.в. |
| SSANGYONG | REXTON W | 2015 - н.в. | |
| SSANGYONG | REXTON W | 2015 - н.в. | |
| SSANGYONG | REXTON W | 2.7 Xdi All-wheel Drive (engine D27DT) | 2012 - н.в. |
| SSANGYONG | REXTON Y400 | 2.2 Xdi (POE) (engine D22DTR) | 2017 - н.в. |
| SSANGYONG | RODIUS | 3.2 4WD (engine G32D) | 2007 - н.в. |
| SSANGYONG | RODIUS | 3.2 (engine G32D) | 2005 - н.в. |
| SSANGYONG | RODIUS | 2.7 Xdi (engine D27DT) | 2005 - н.в. |
| SSANGYONG | RODIUS | 2.7 Xdi 4WD (engine D27DT) | 2005 - н.в. |
| SSANGYONG | RODIUS II TURISMO | 2.0 Xdi (engine D20DTR) | 2013 - н.в. |
| SSANGYONG | RODIUS II TURISMO | 2.0 Xdi 4WD (engine D20DTR) | 2013 - н.в. |
| SSANGYONG | RODIUS II TURISMO | 2015 - н.в. | |
| SSANGYONG | RODIUS II TURISMO | 2015 - н.в. | |
| SSANGYONG | STAVIC | 2013 - н.в. |
Product data sheet / warranty card
